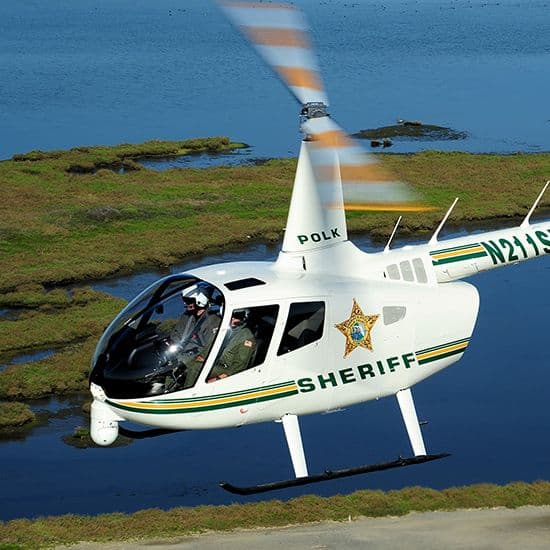

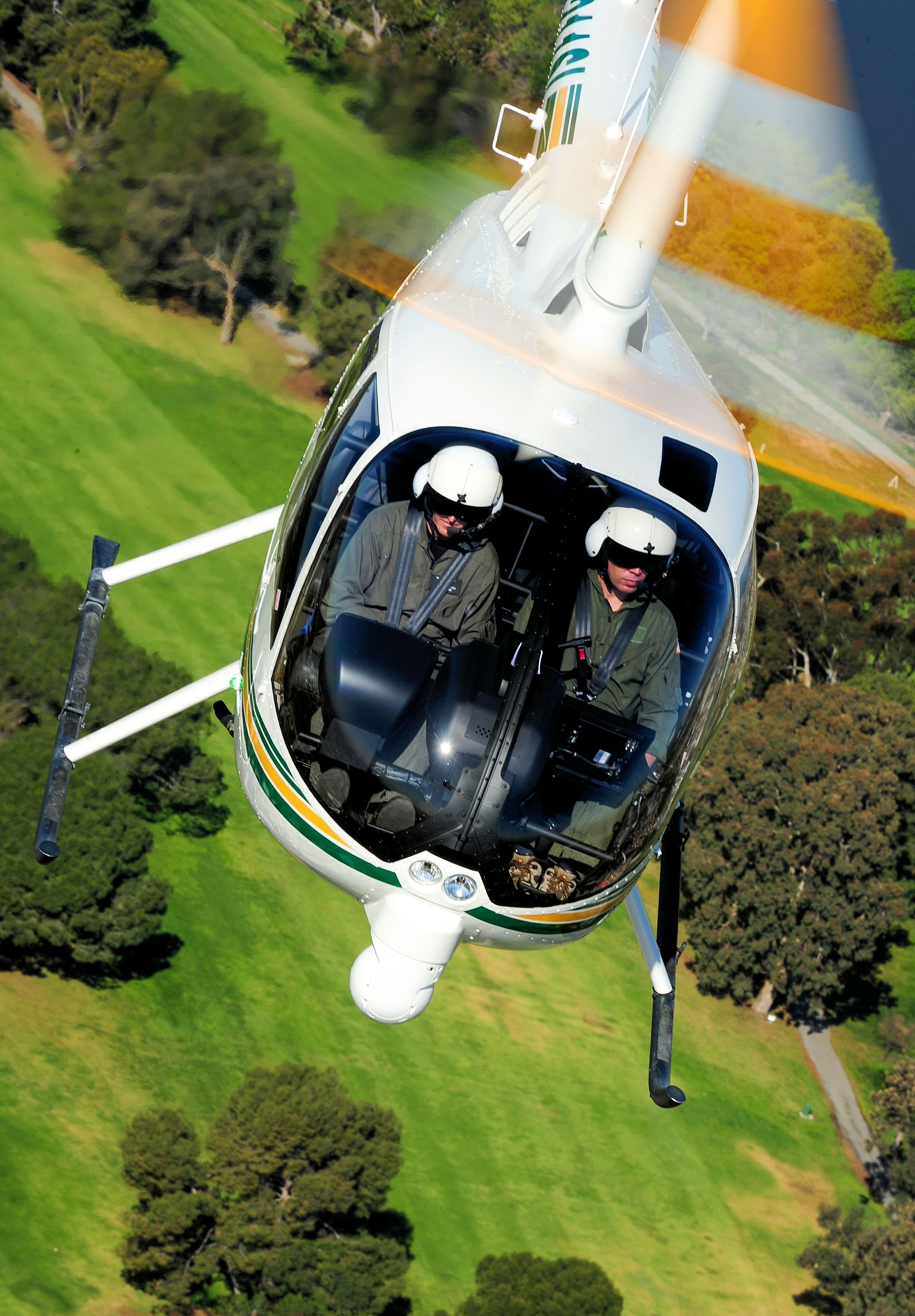

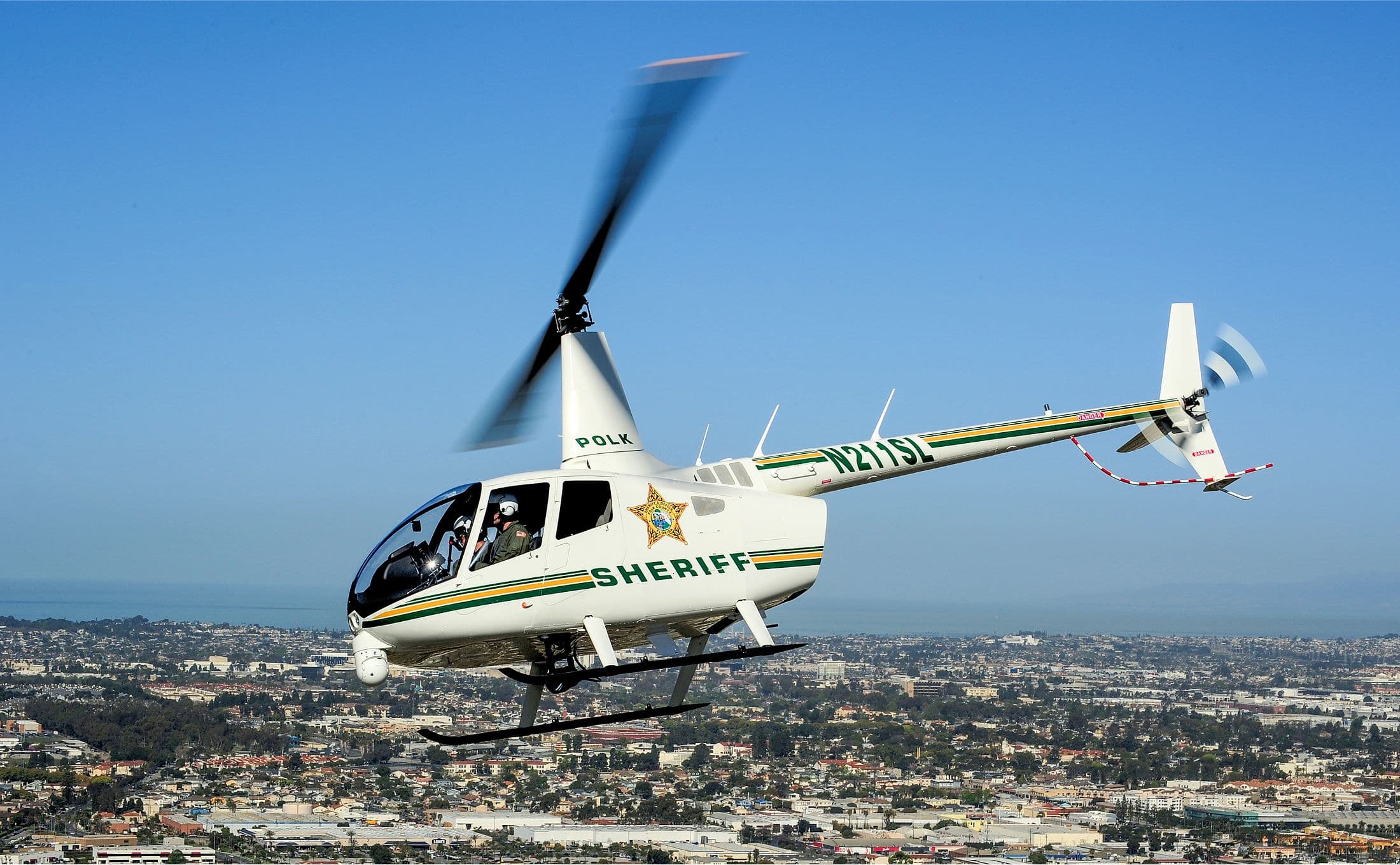

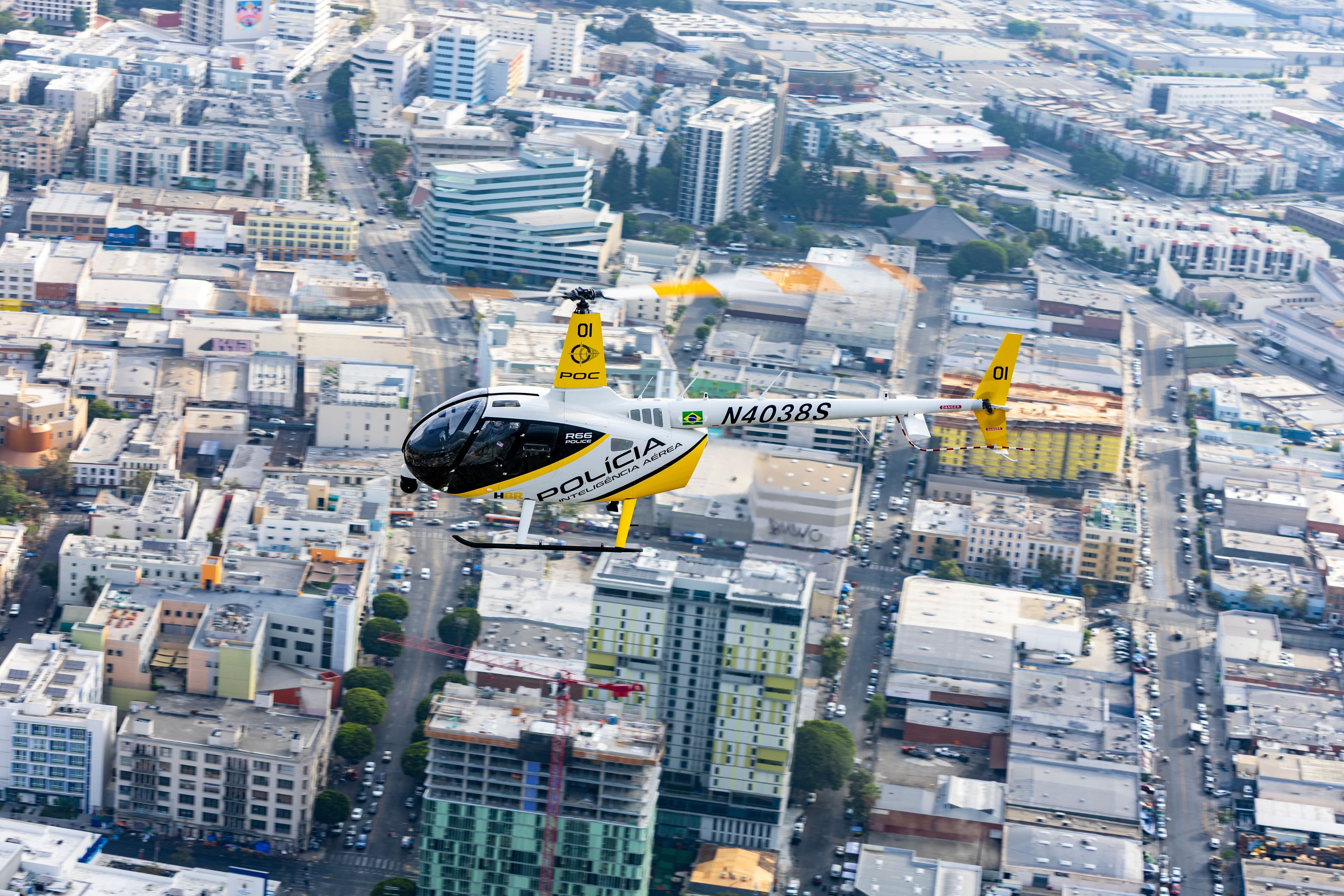

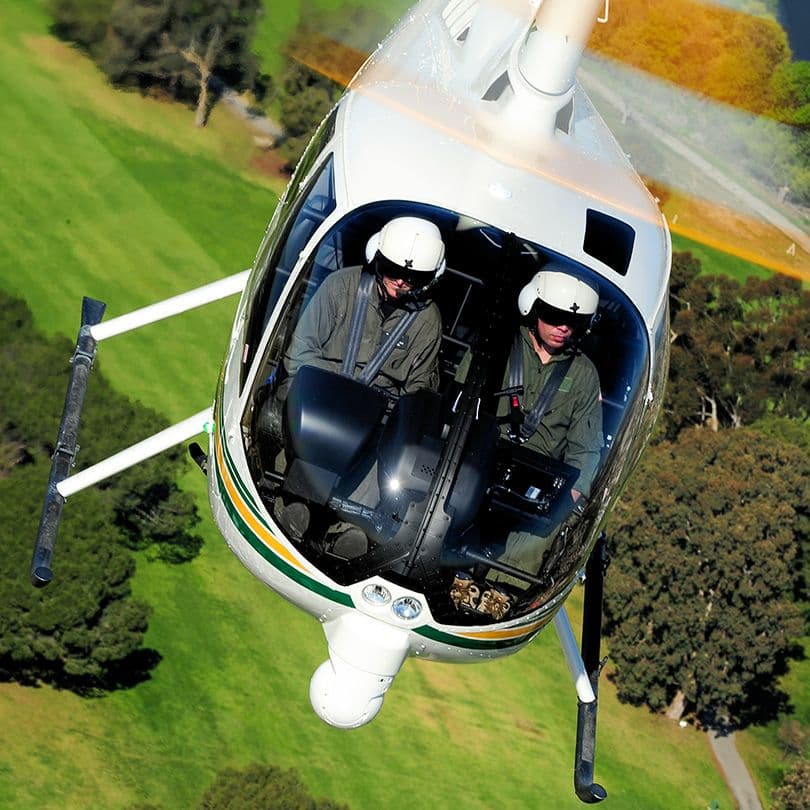

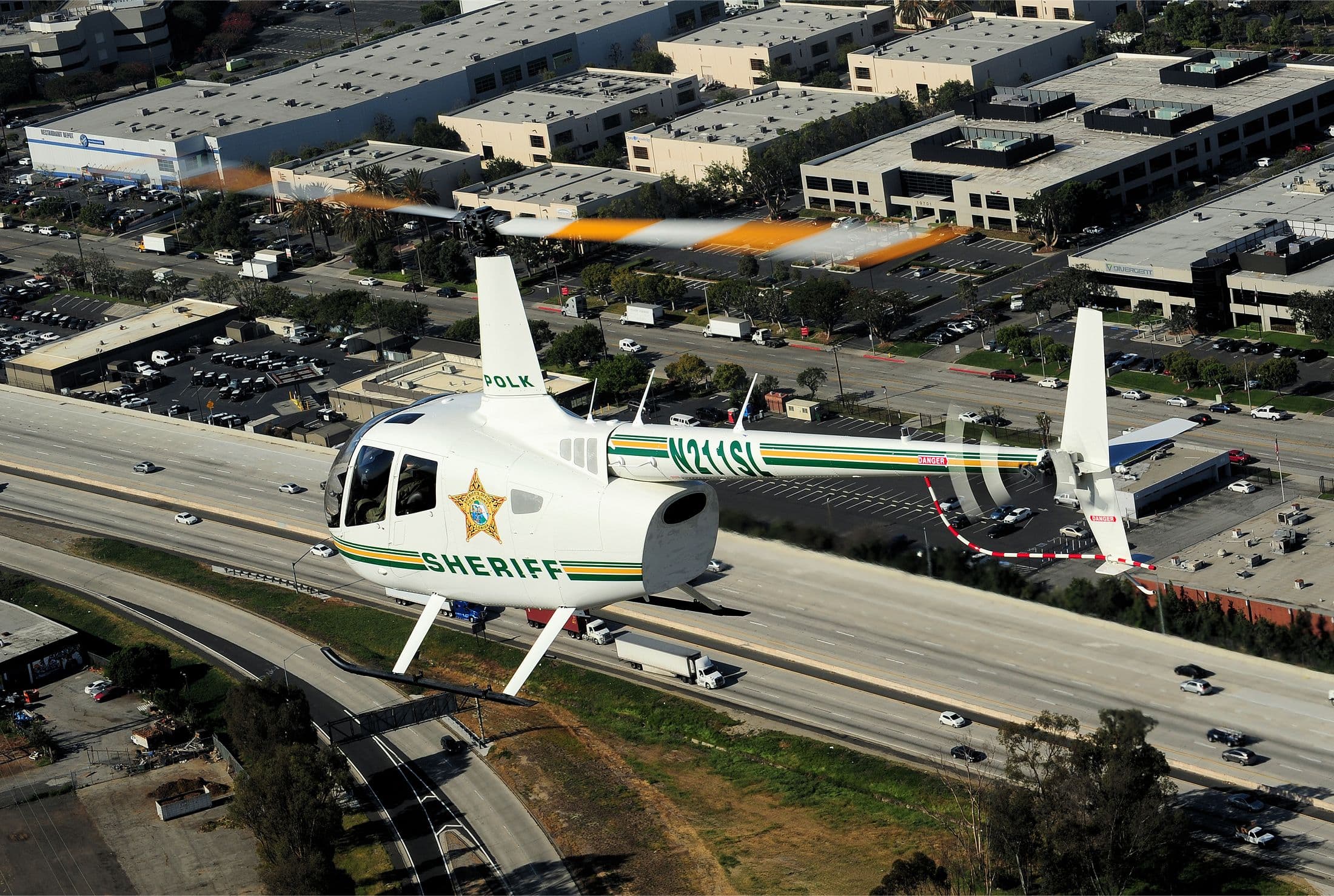

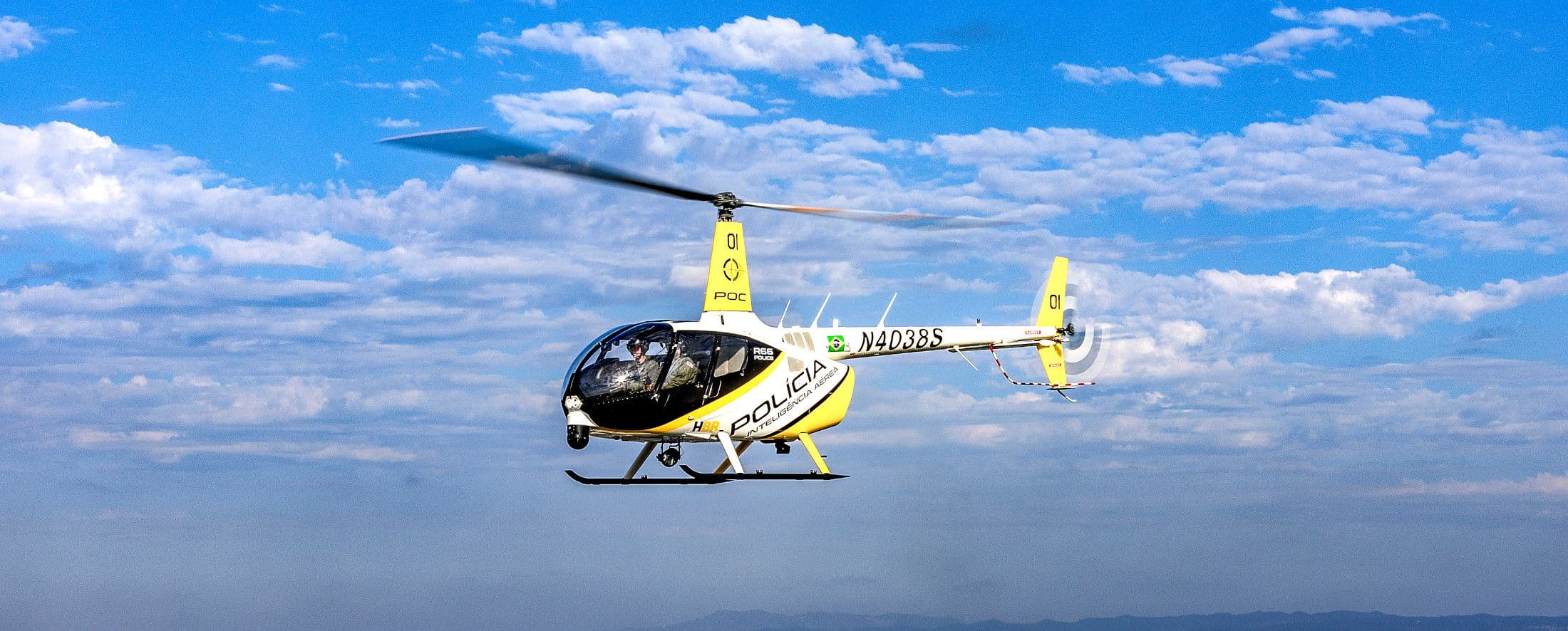

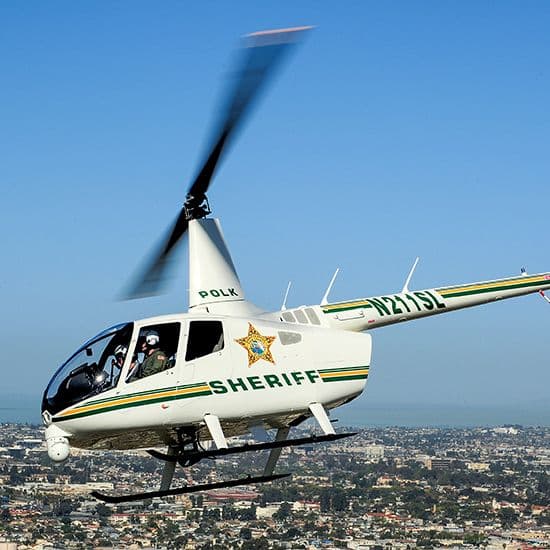

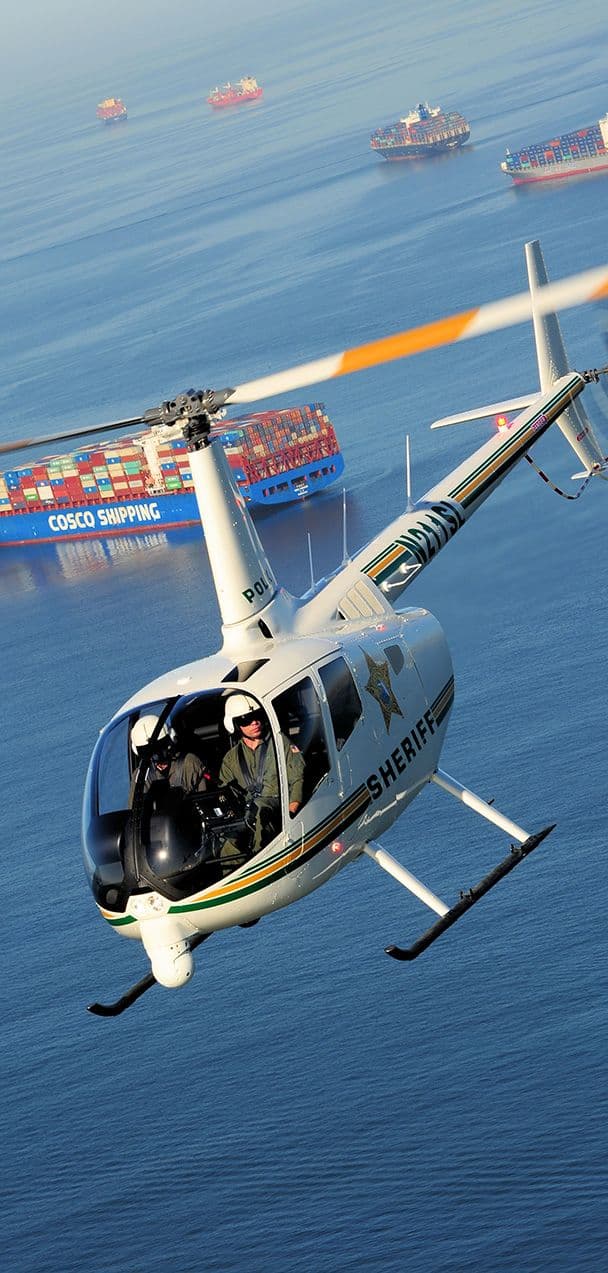

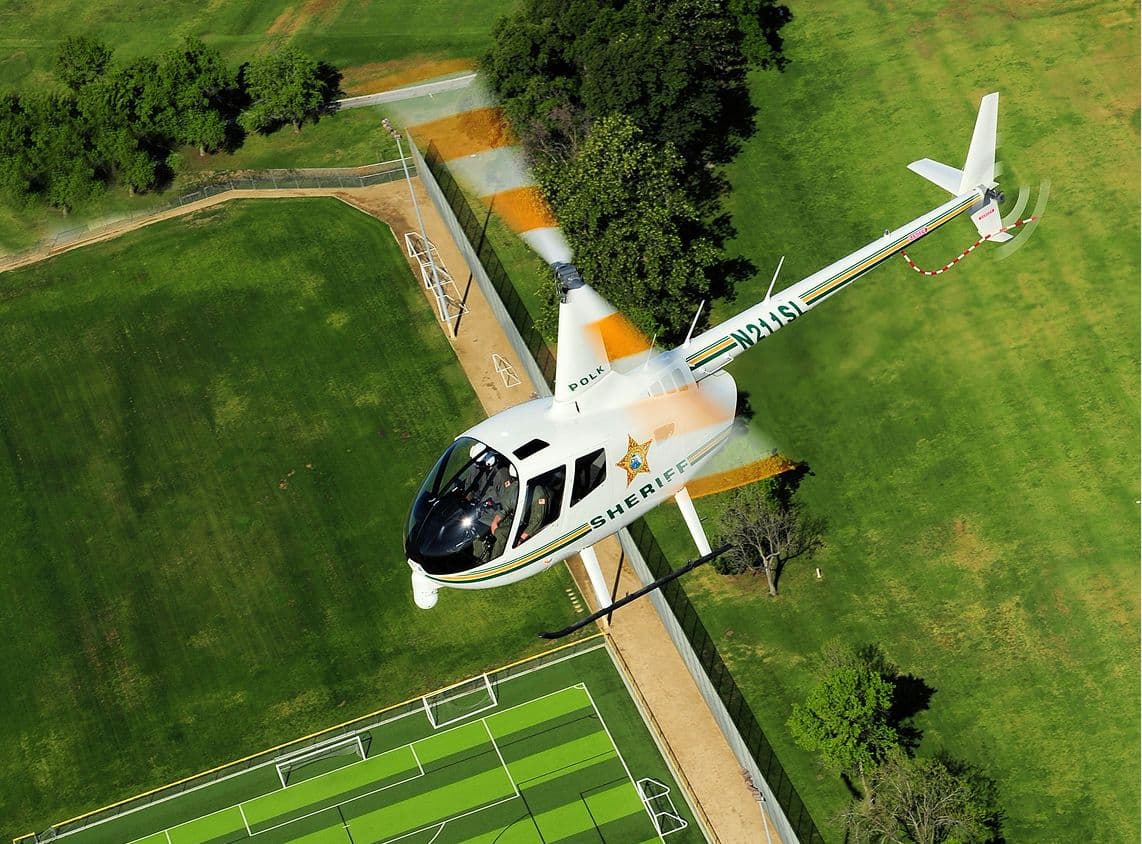

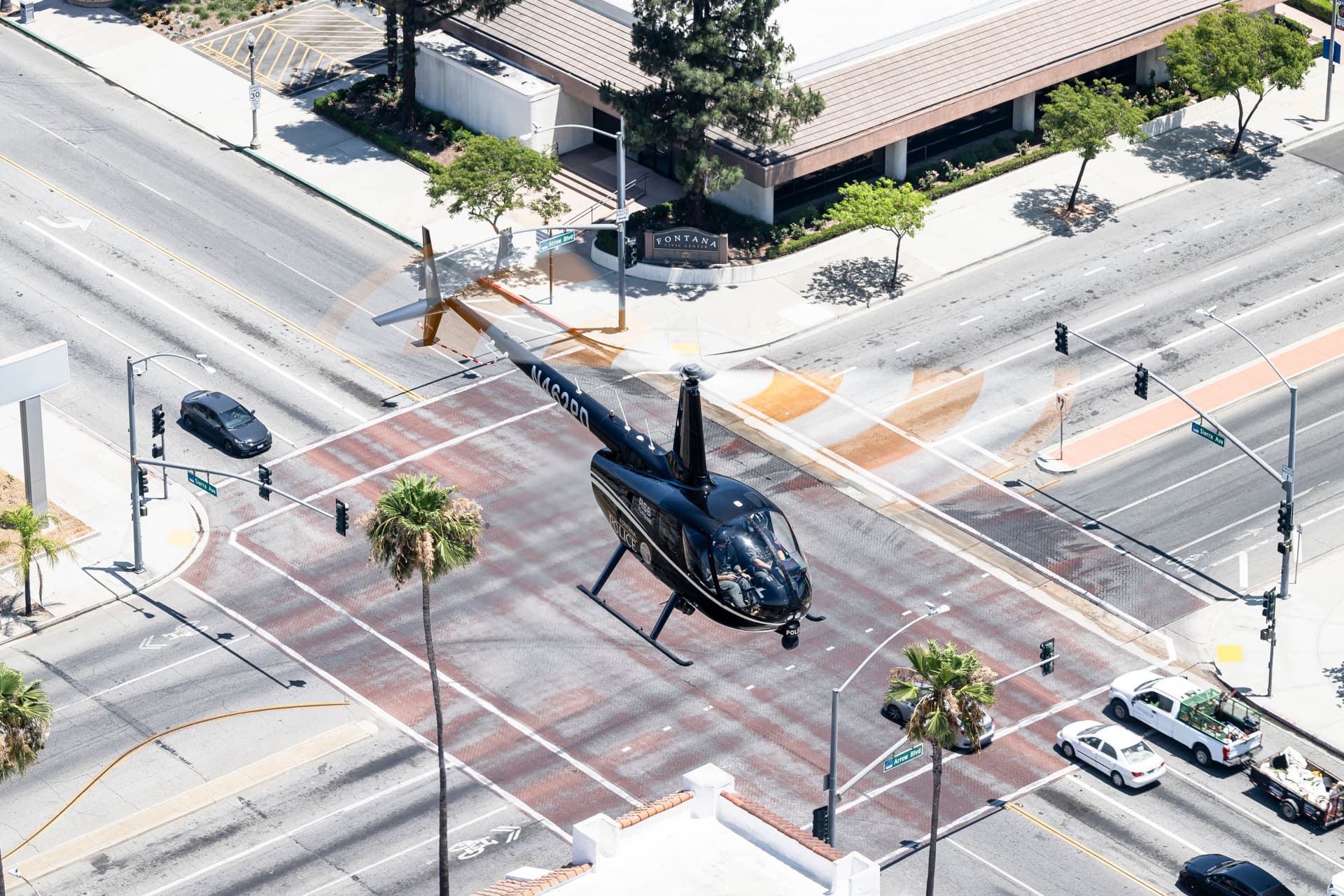

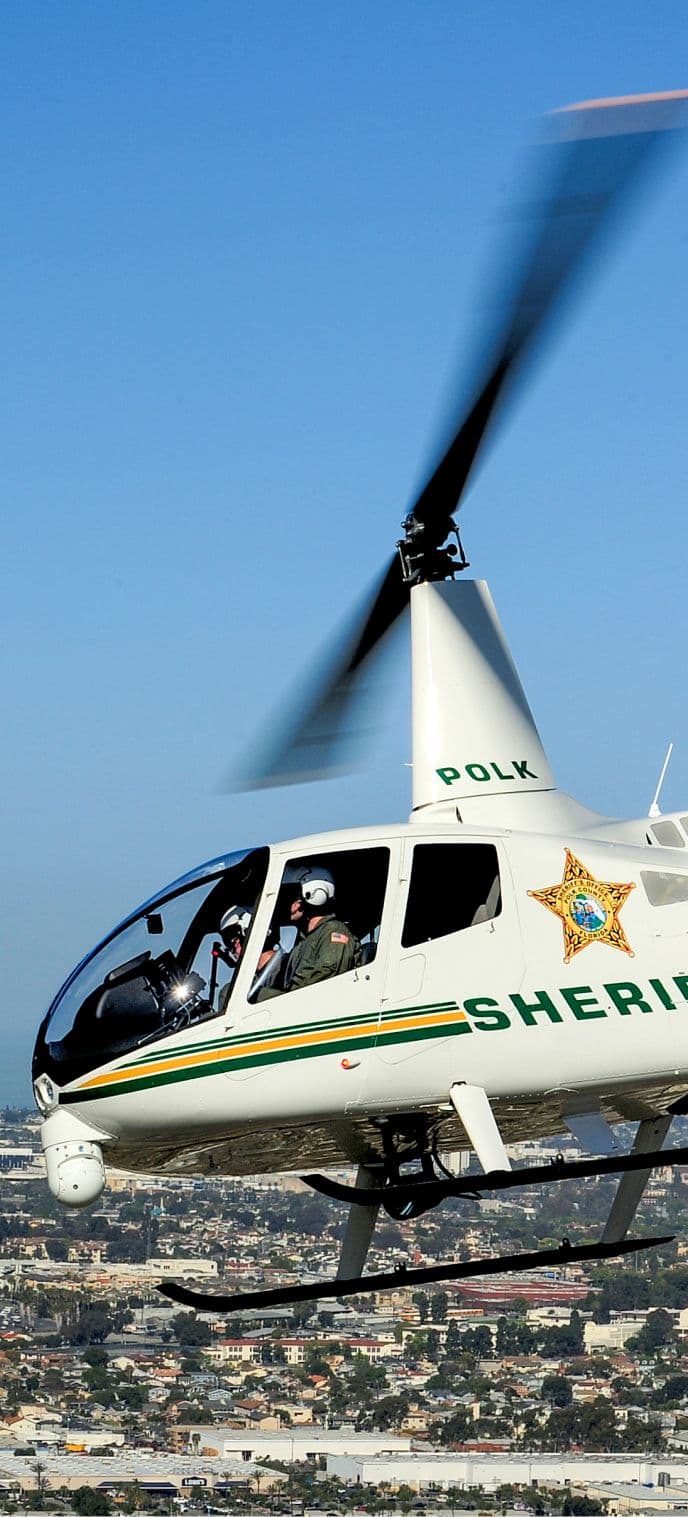

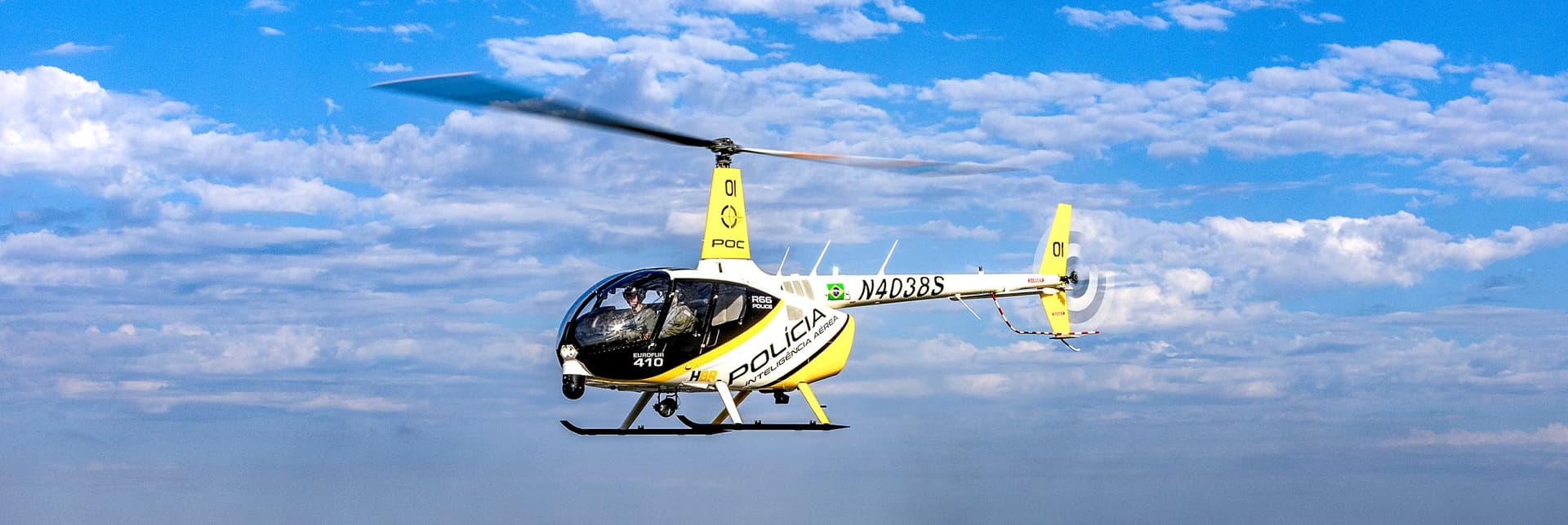

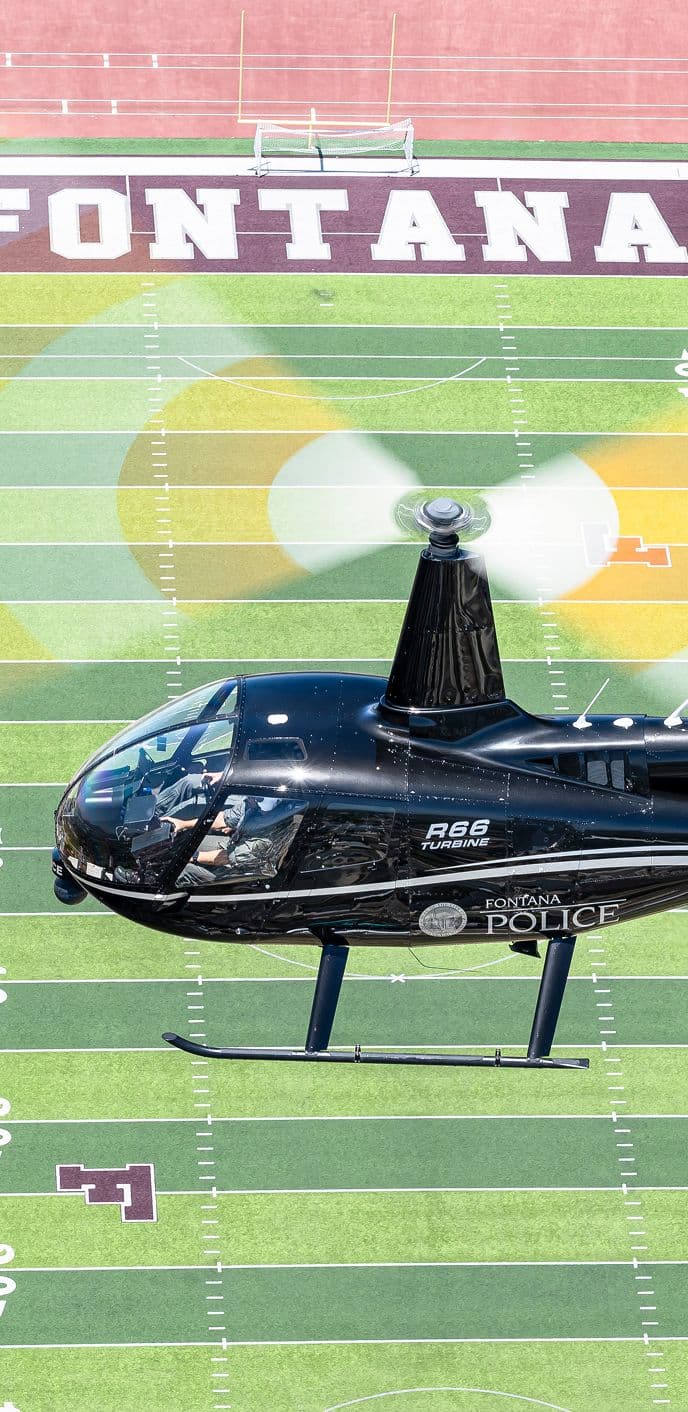

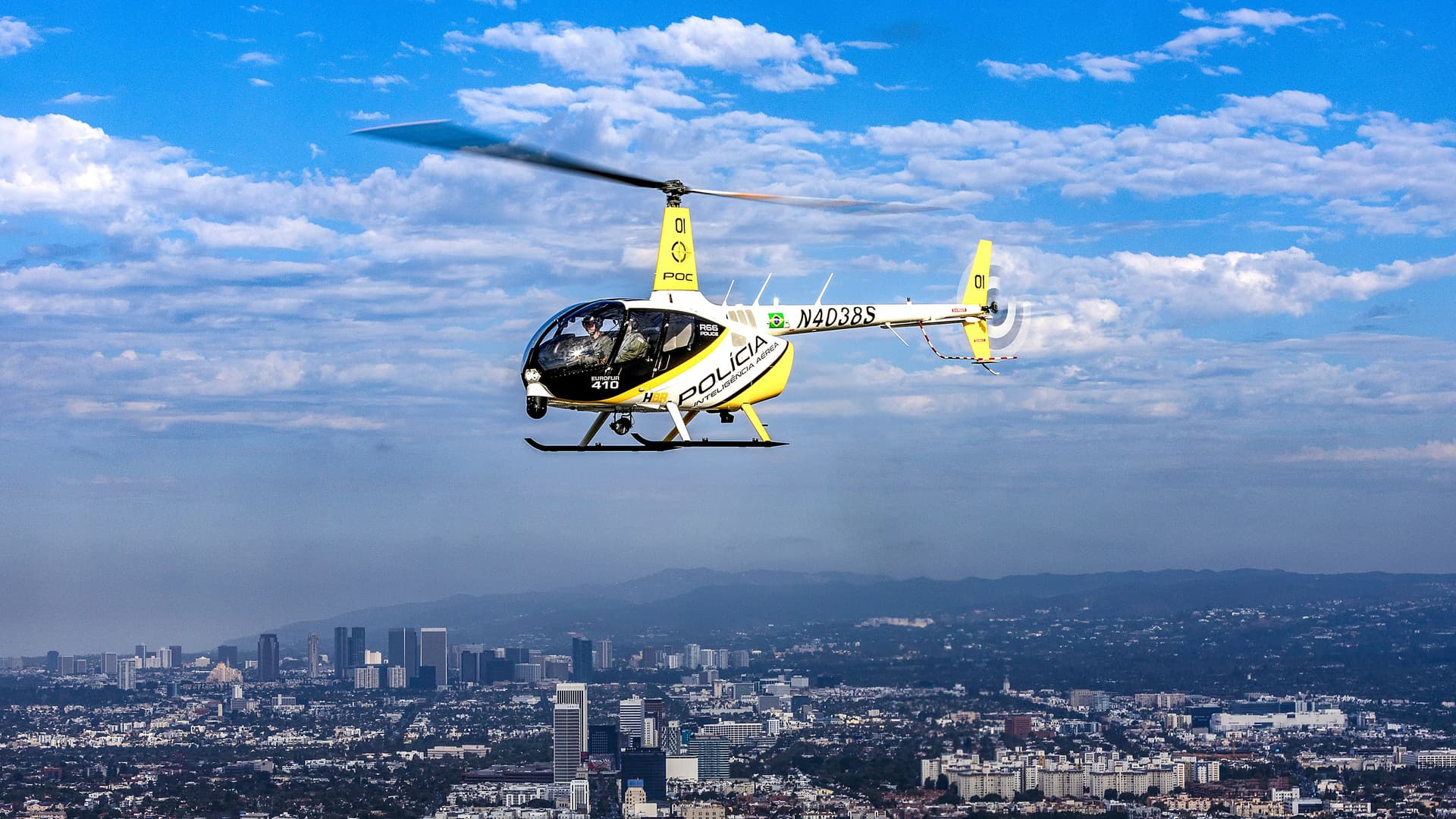

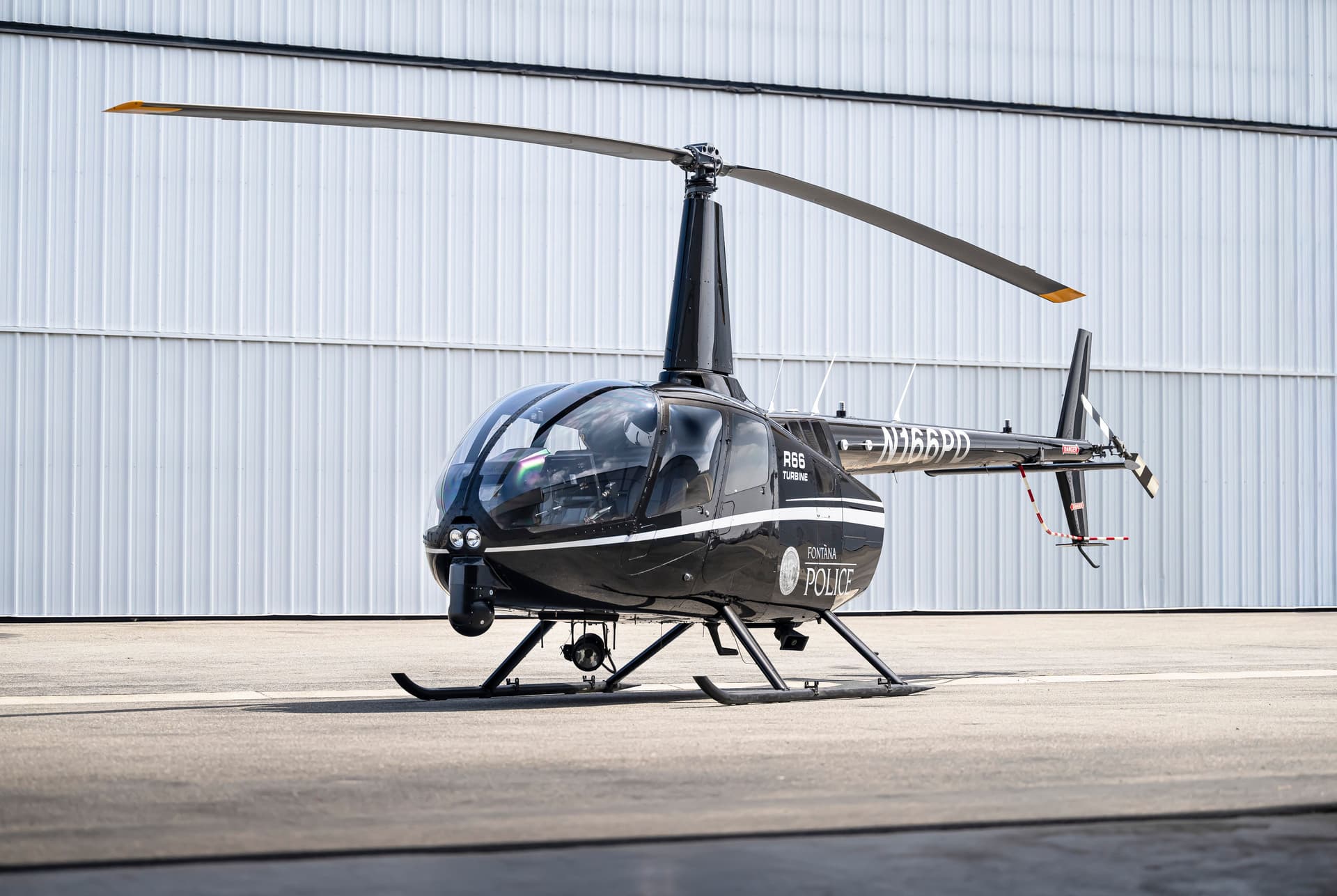

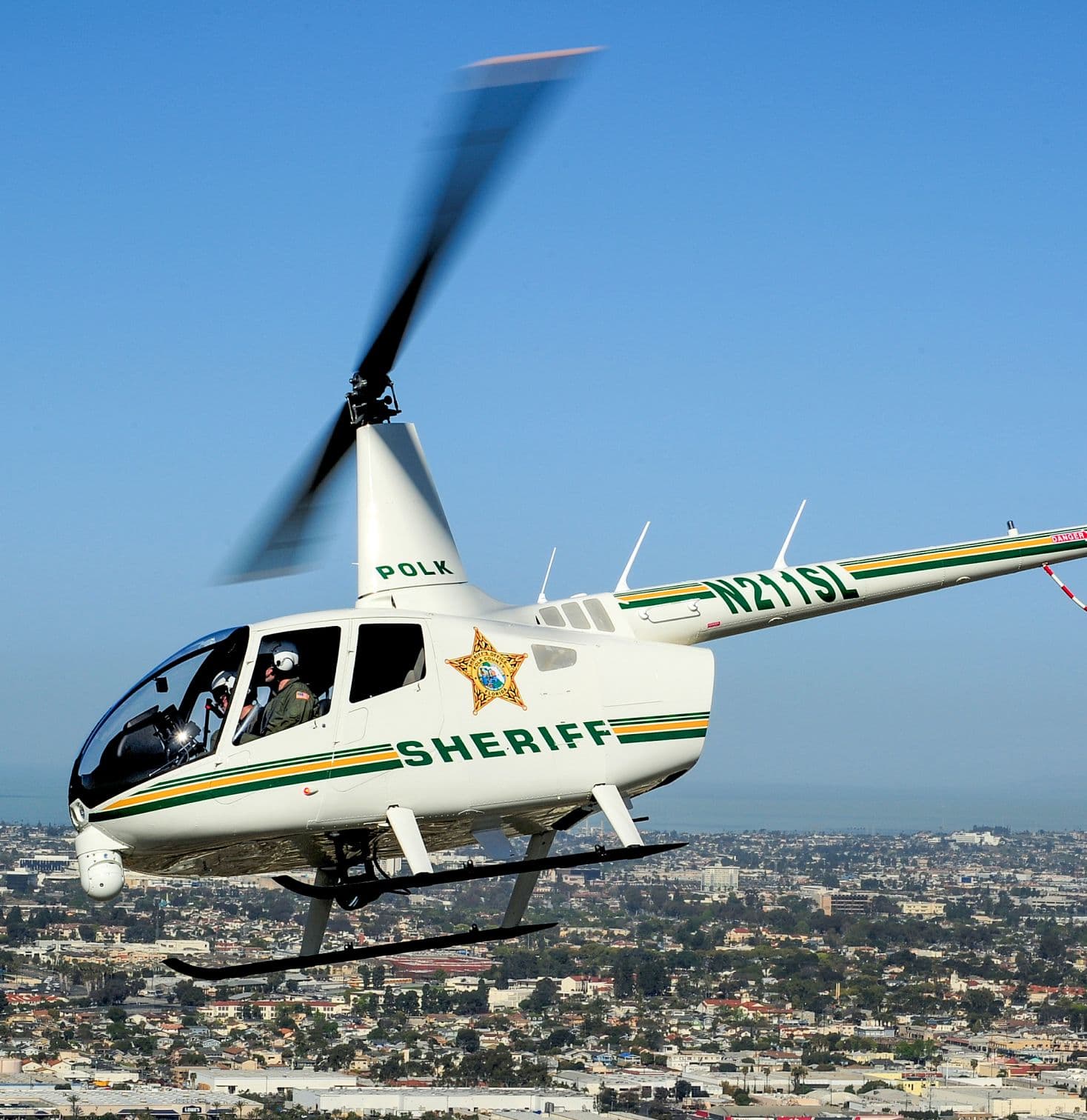

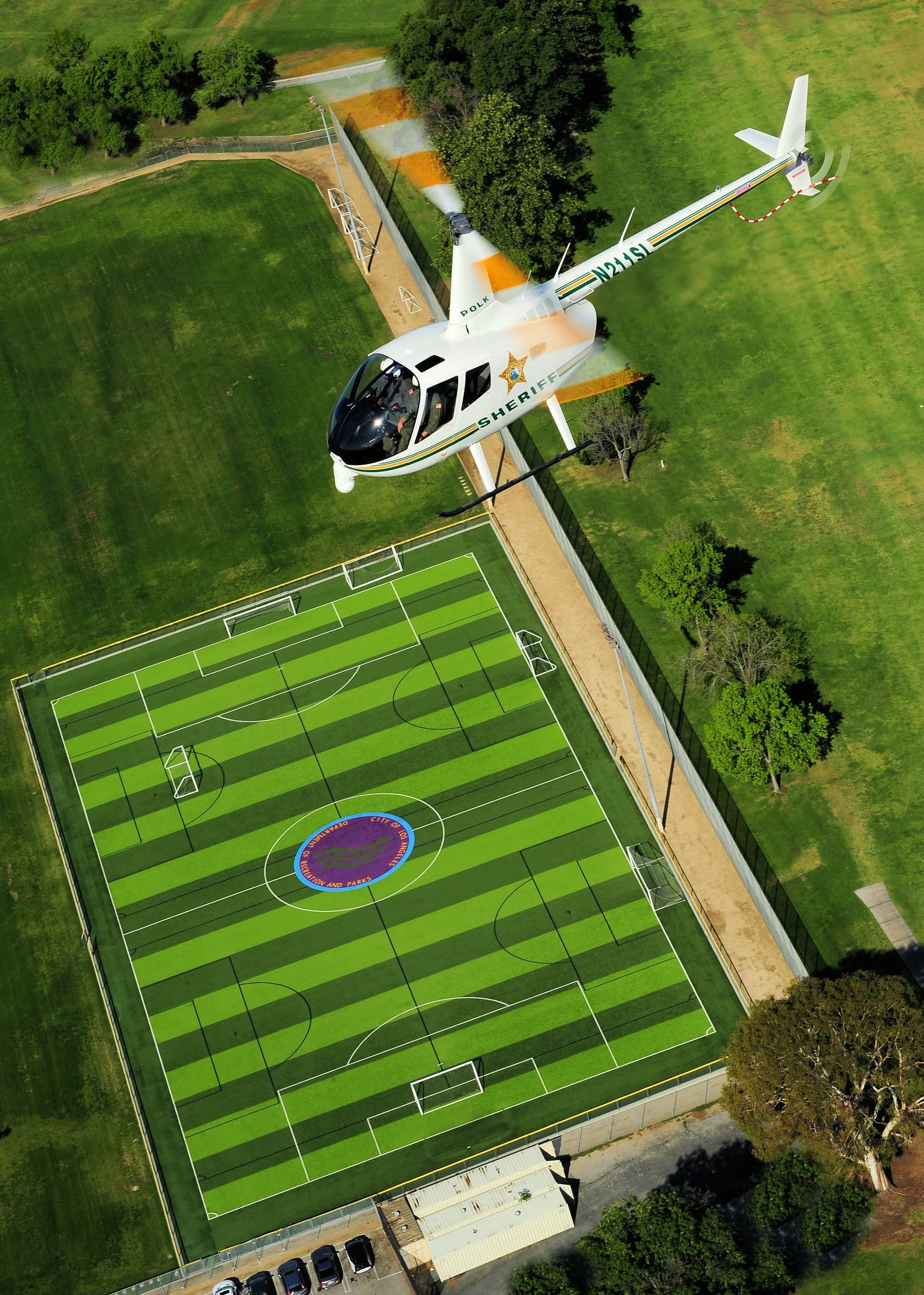

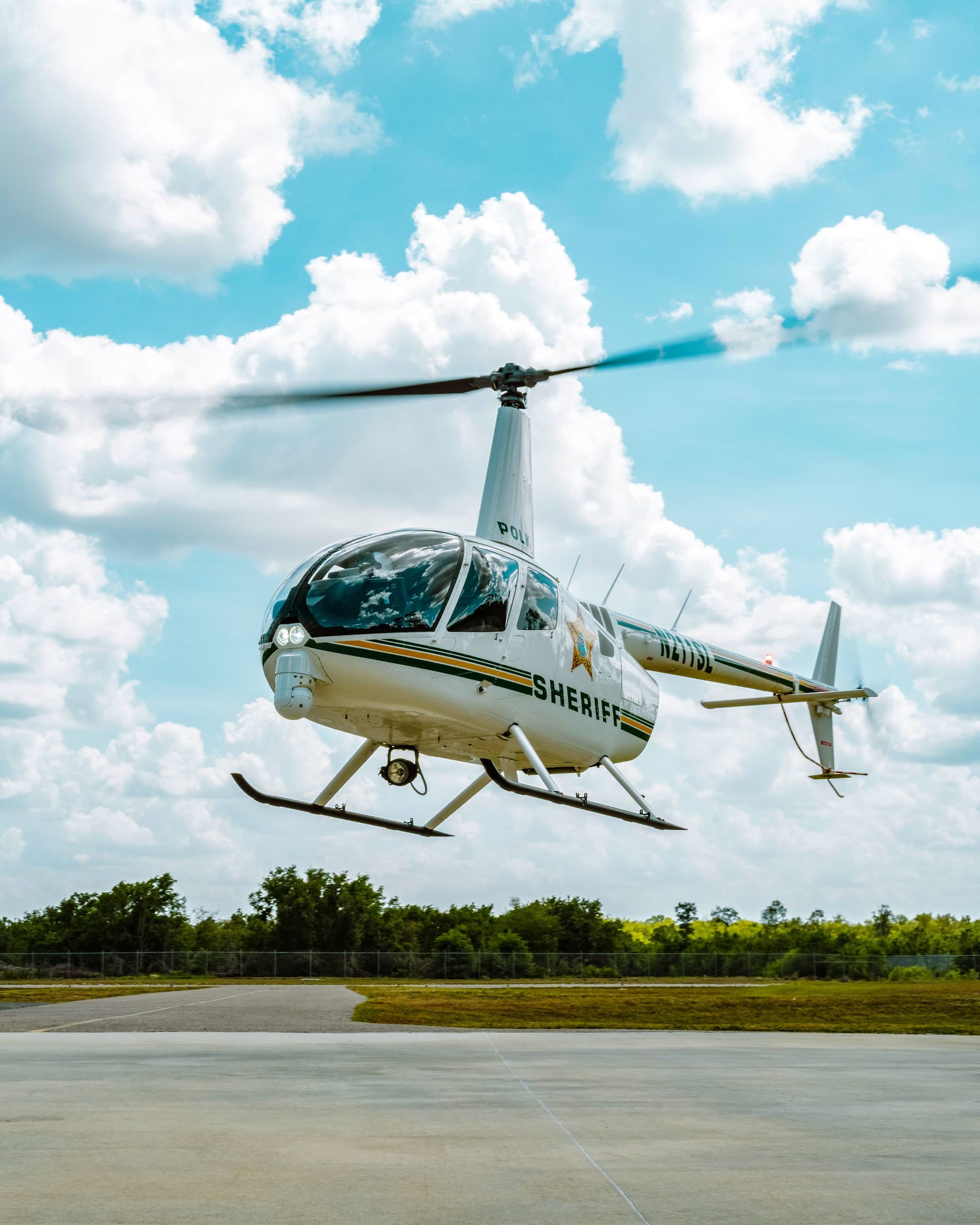

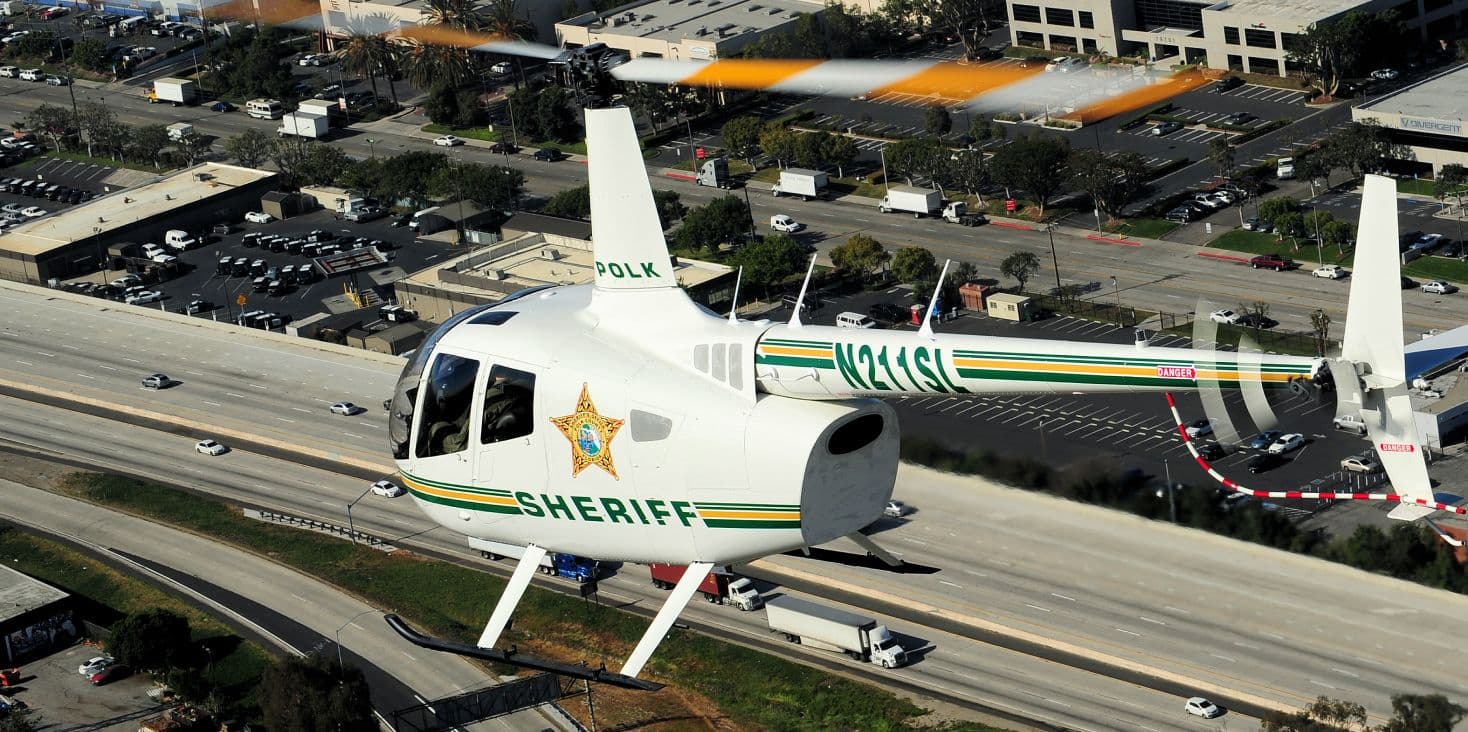

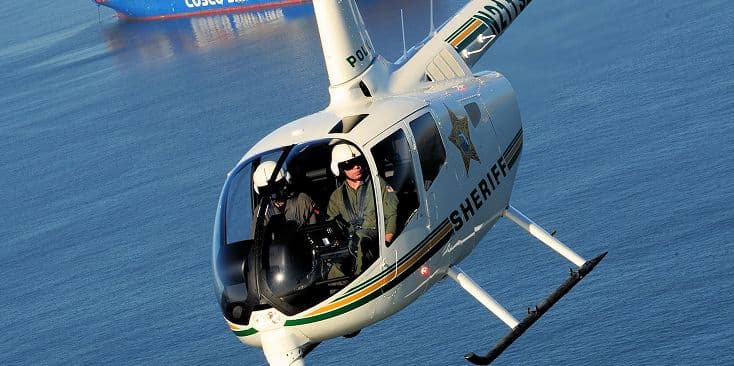

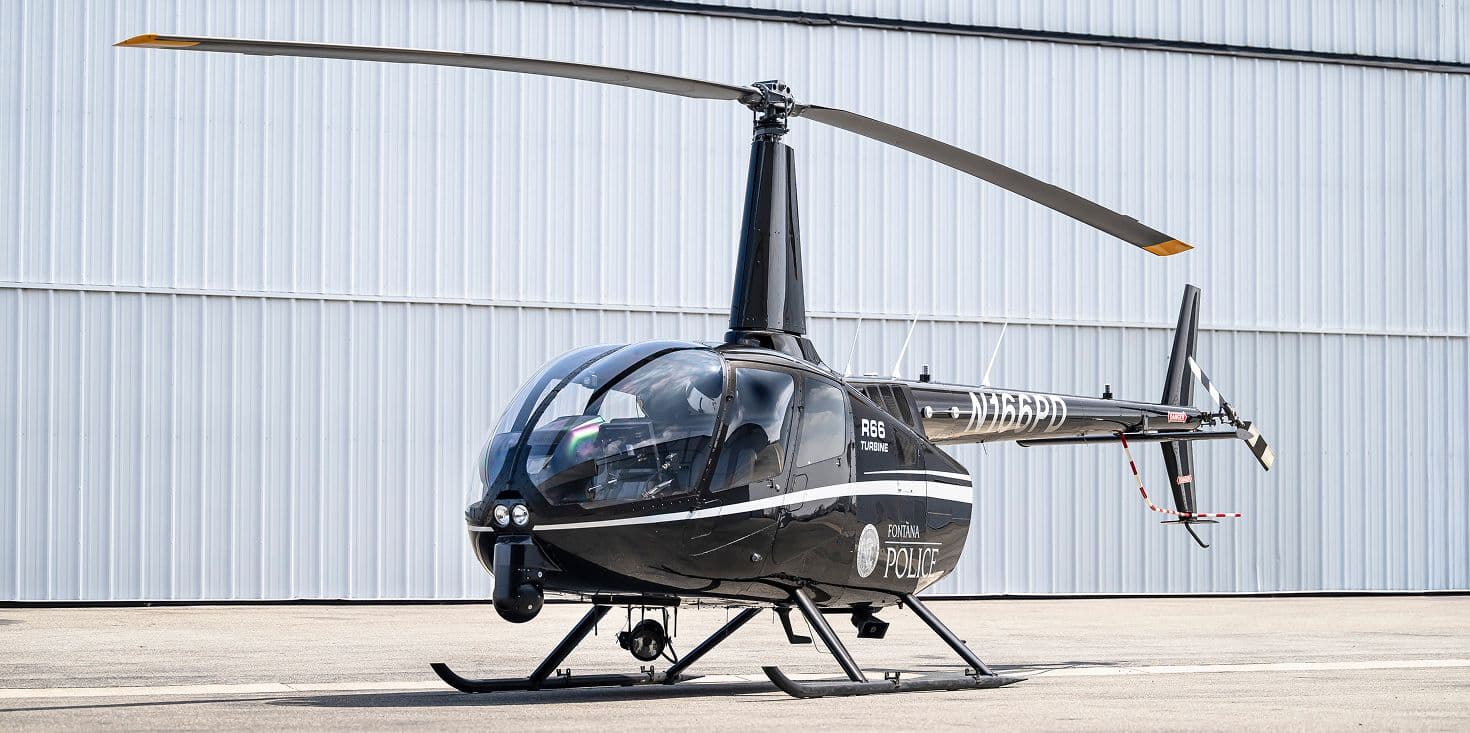

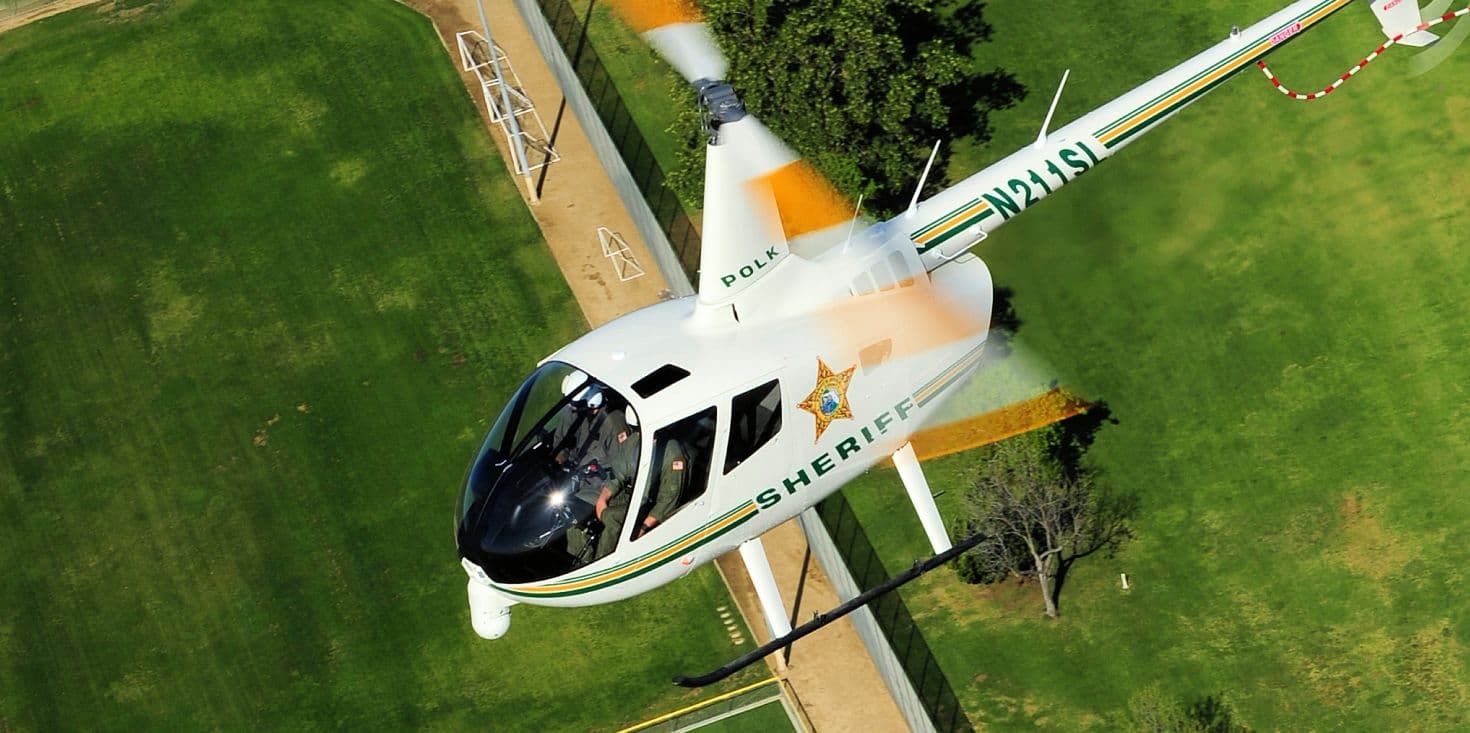

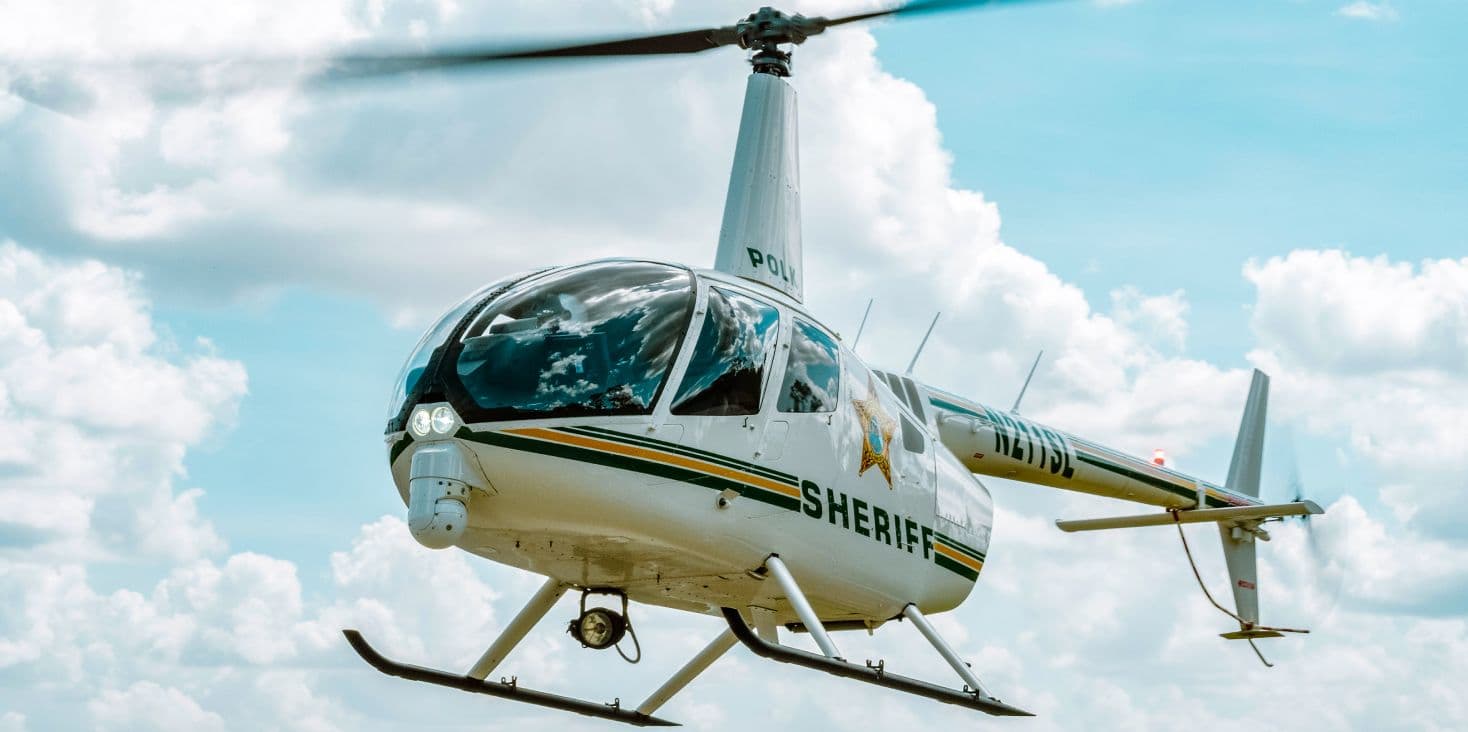

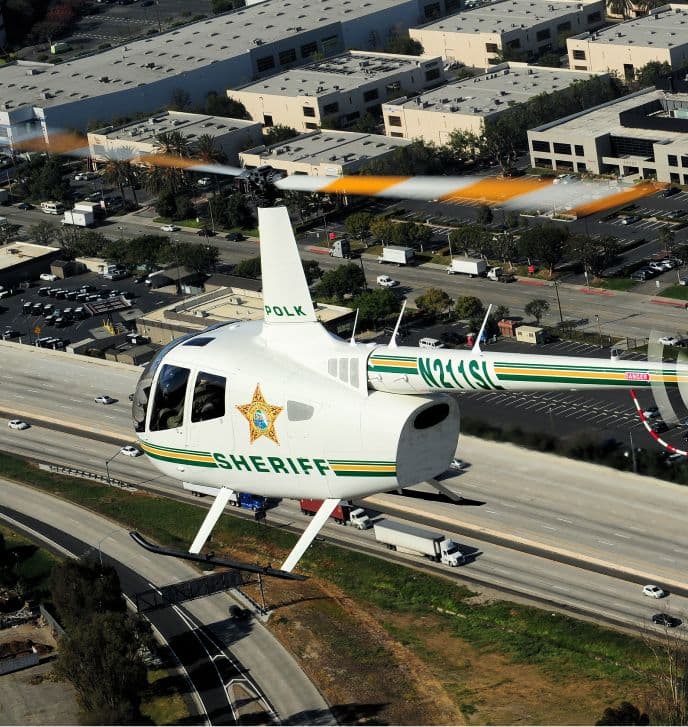

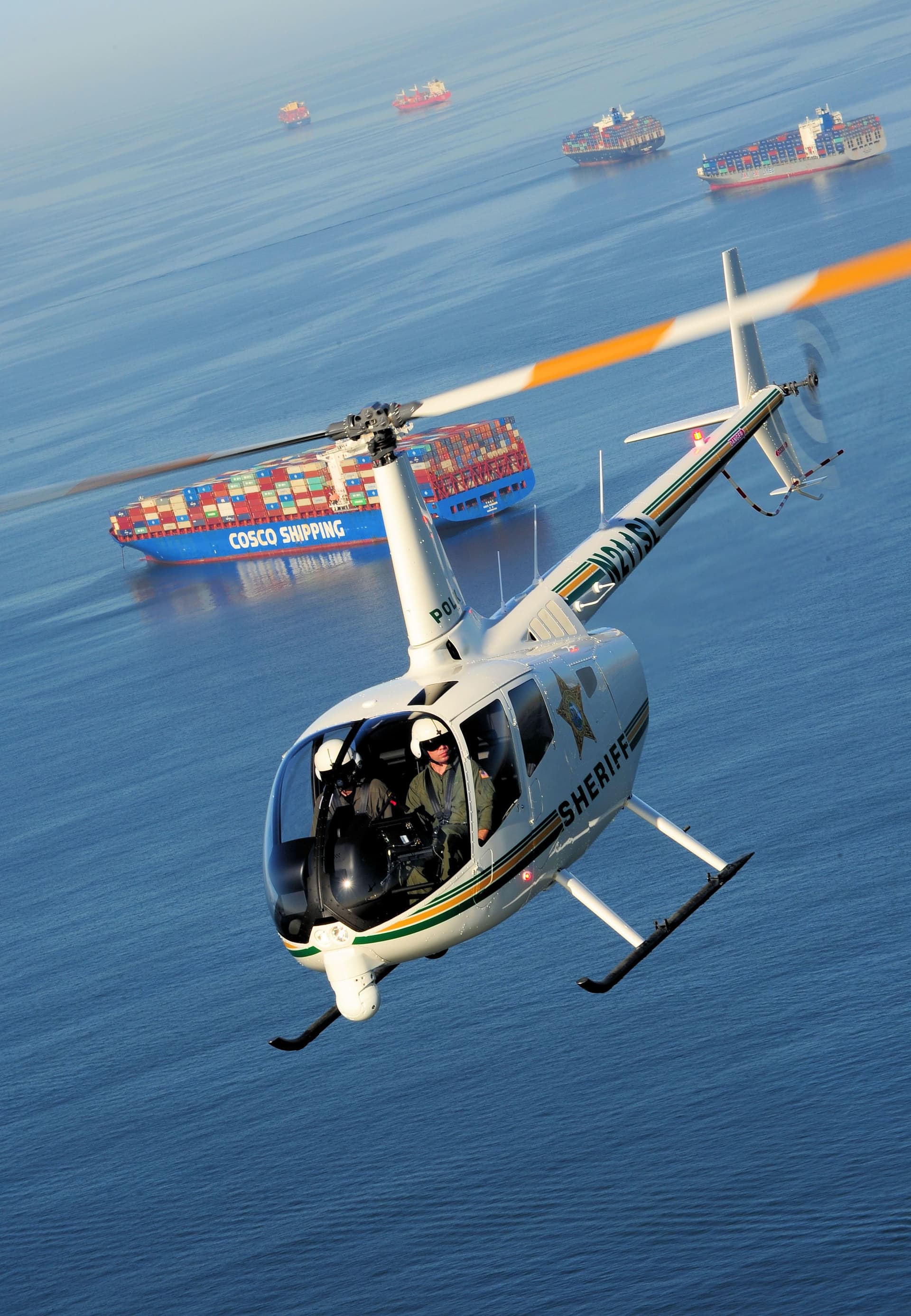

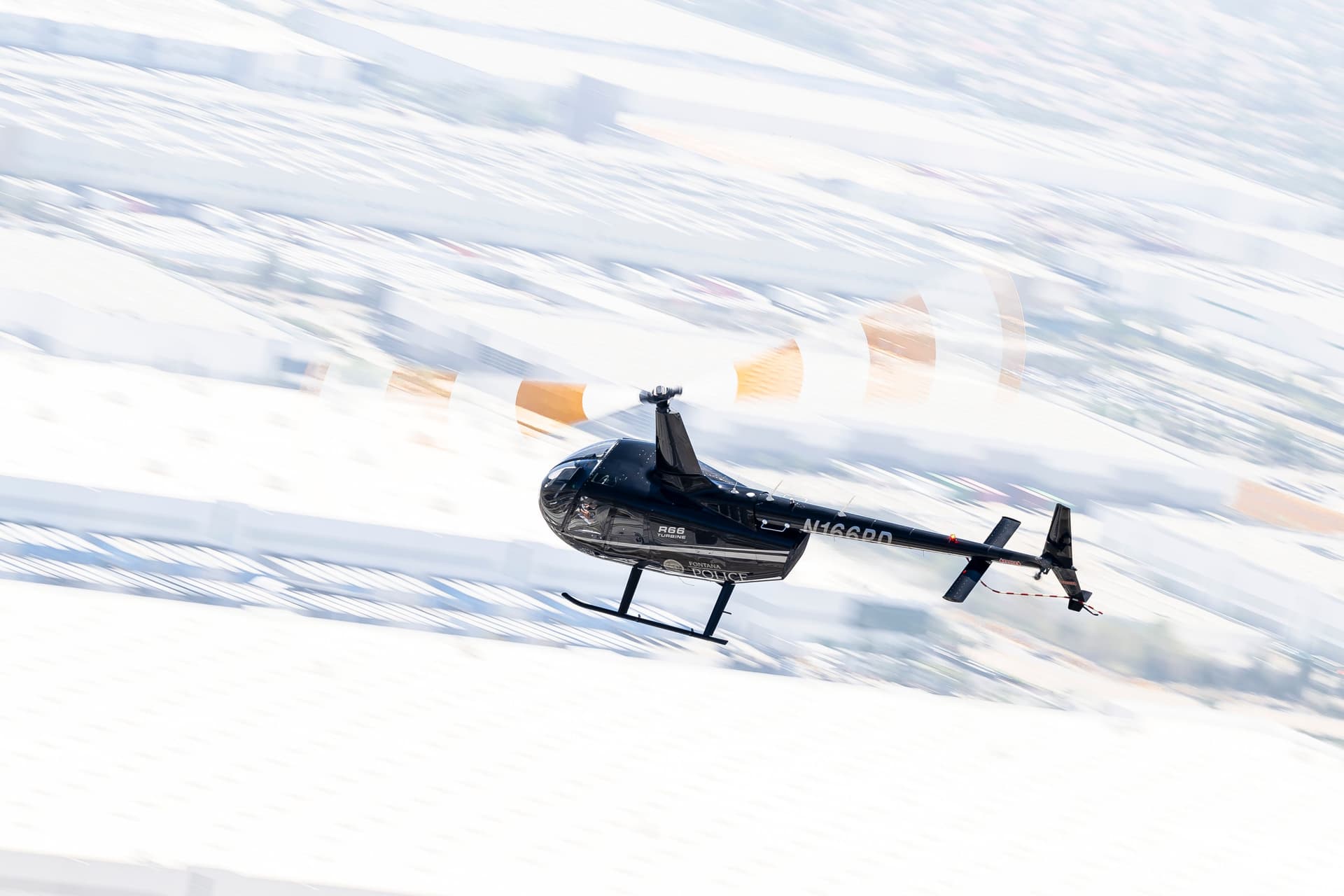

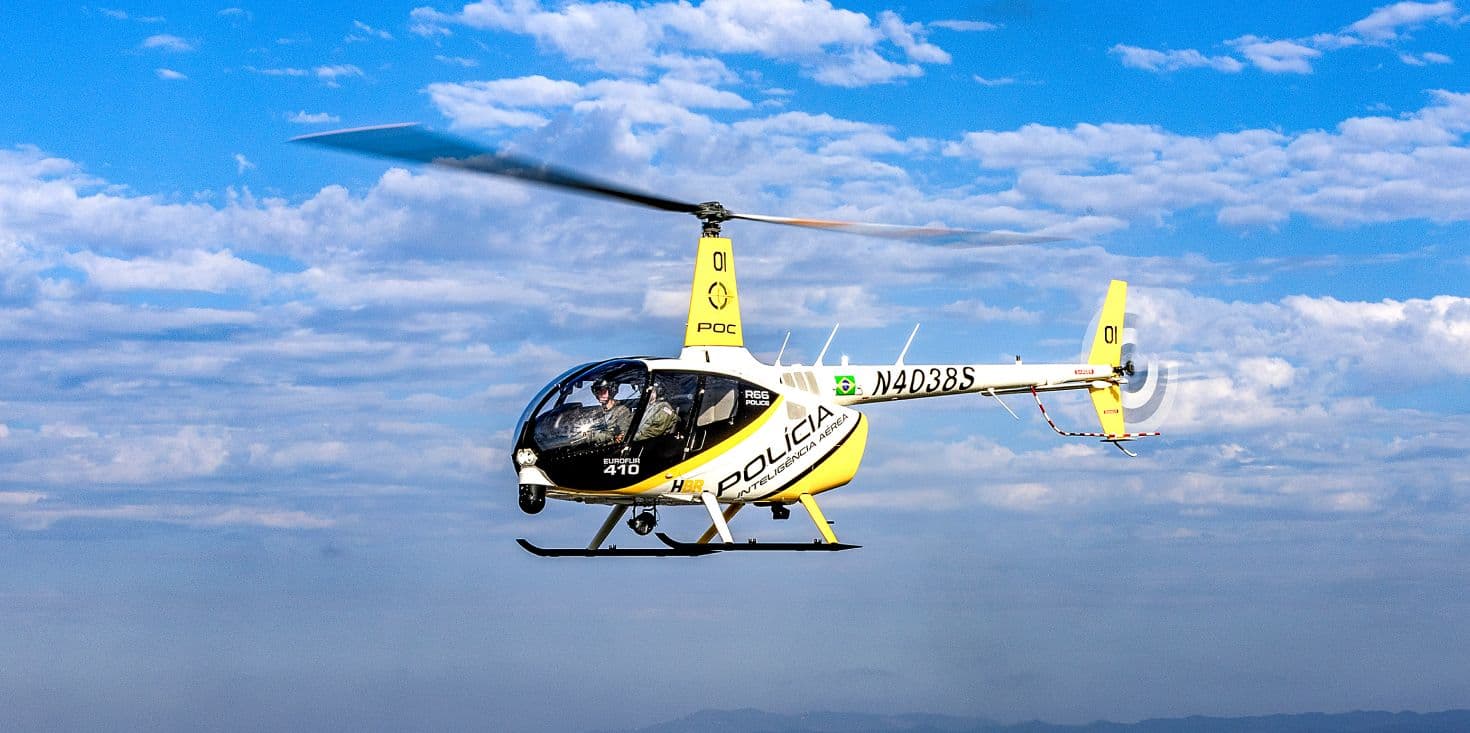

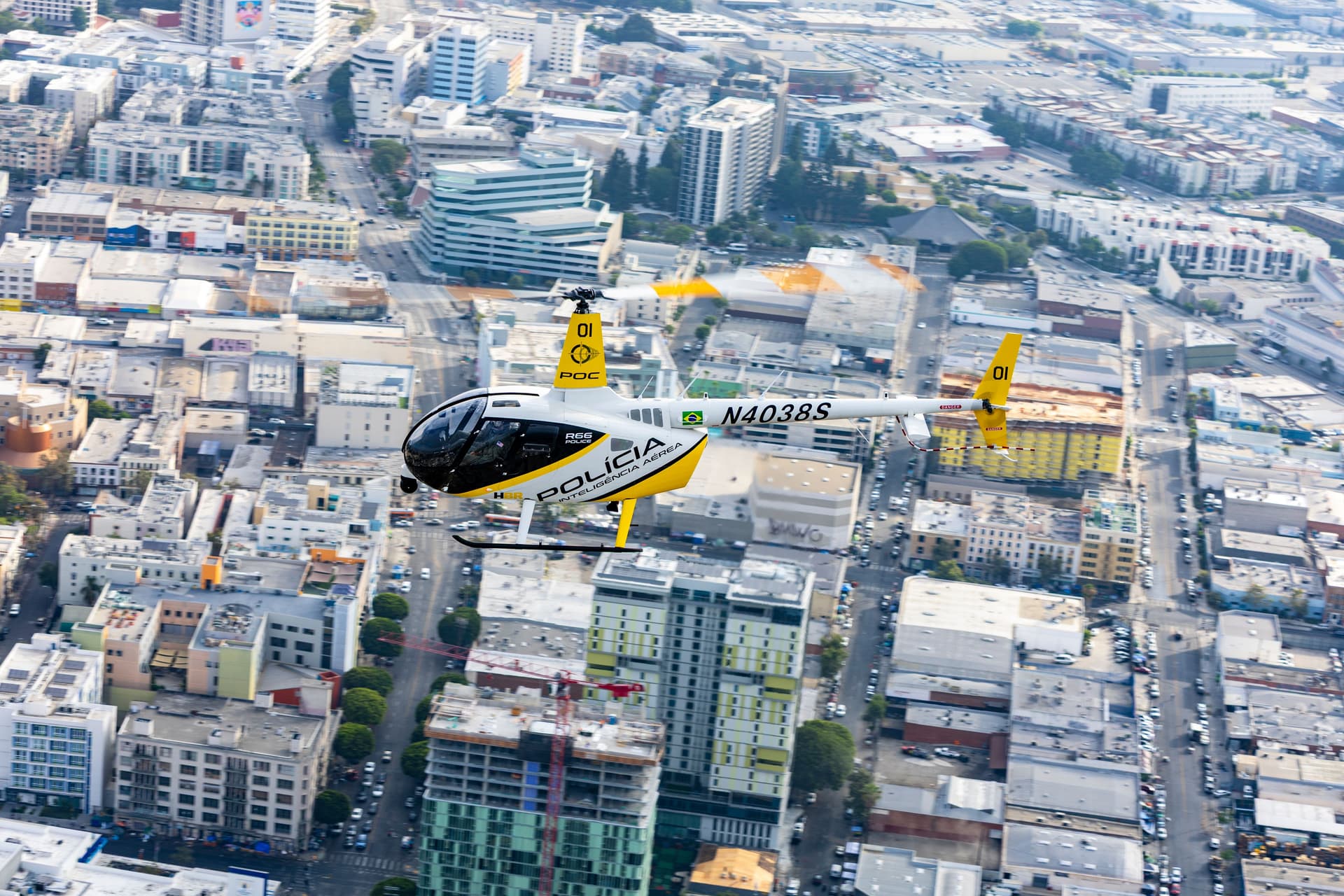

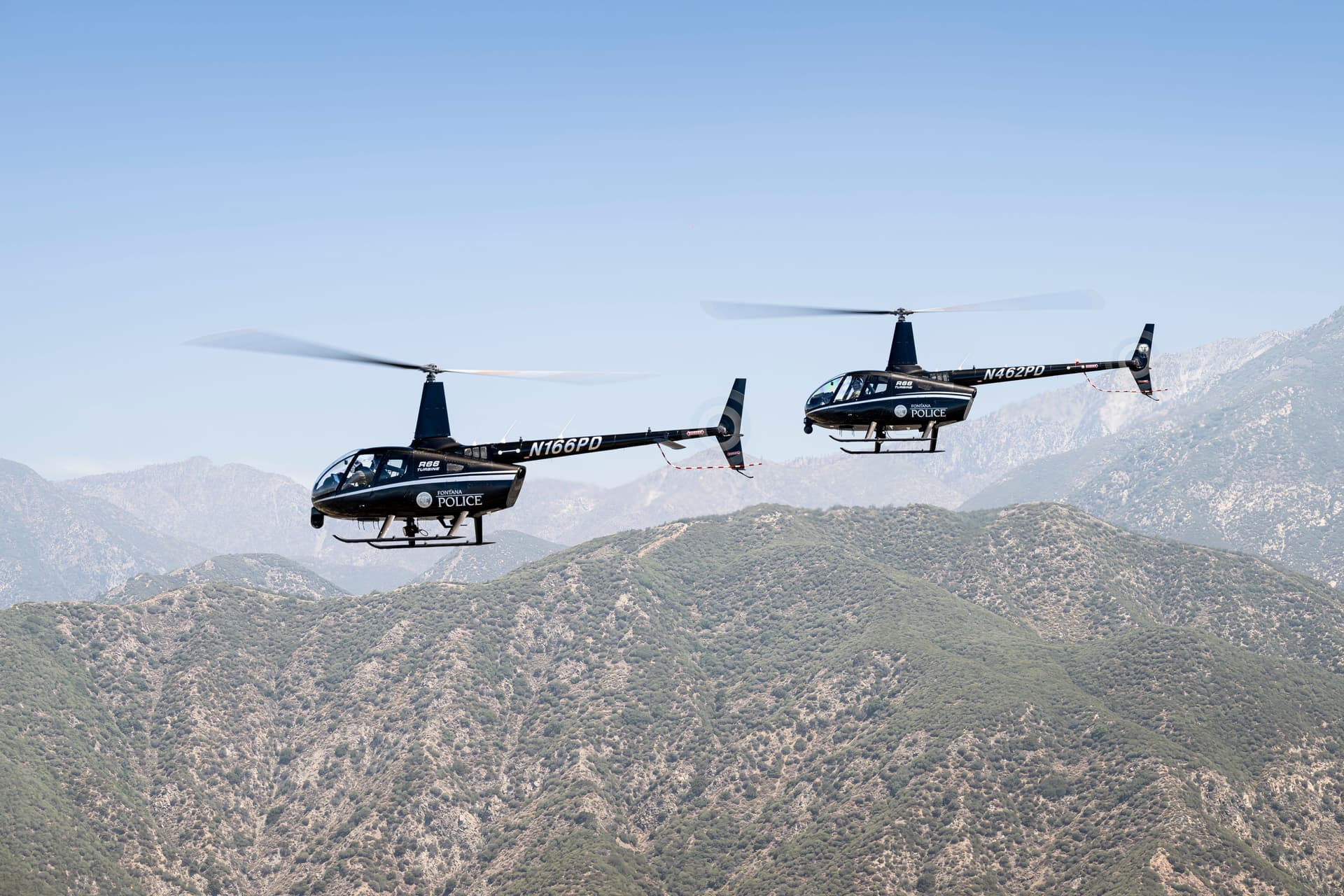

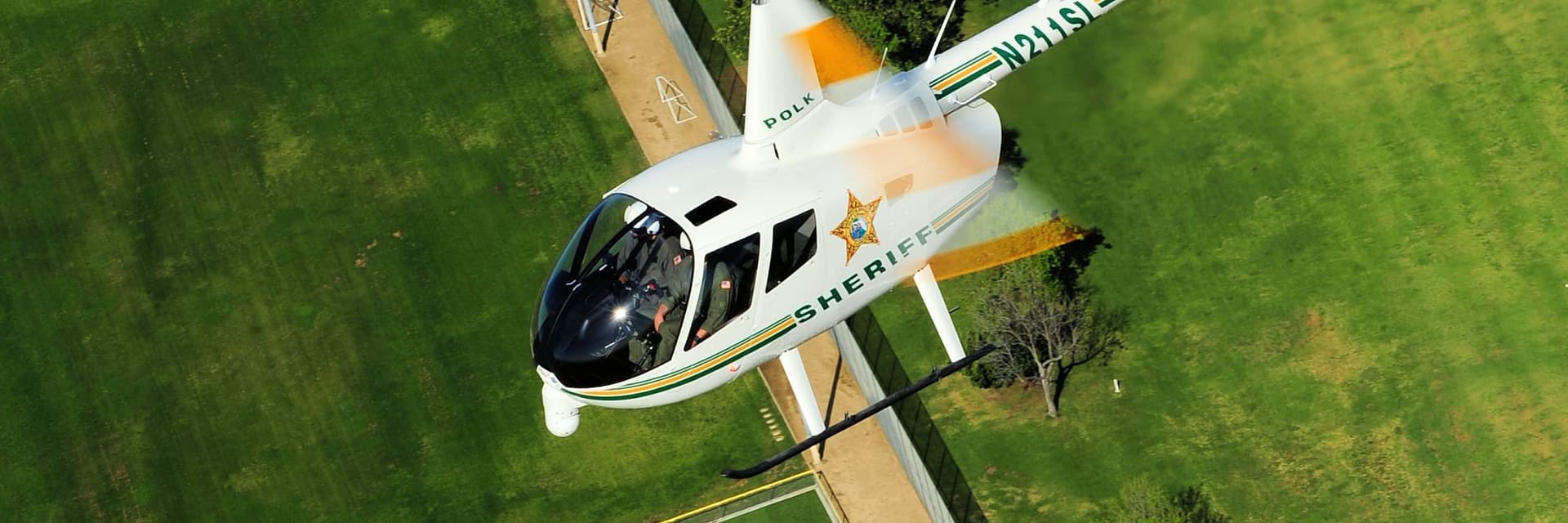

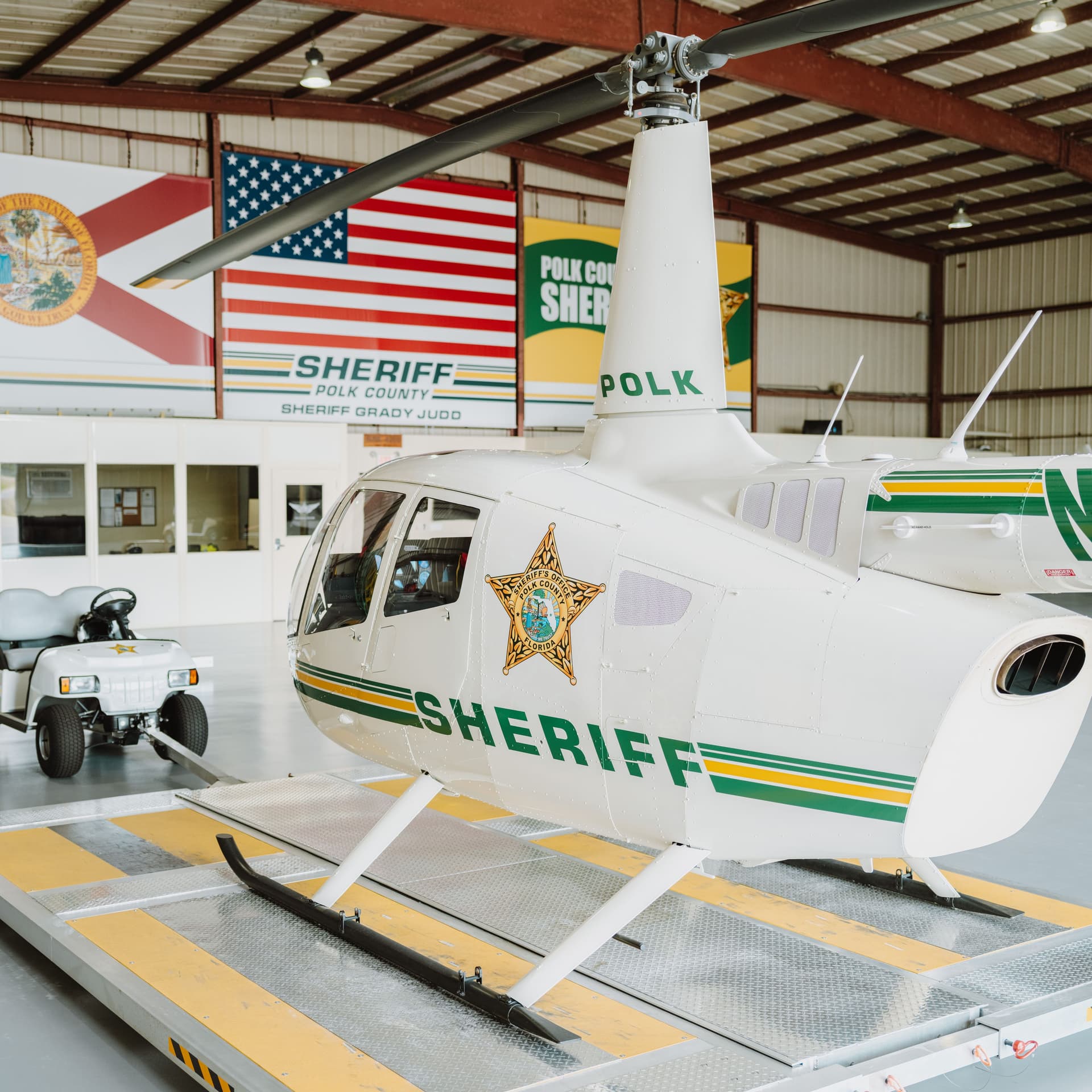

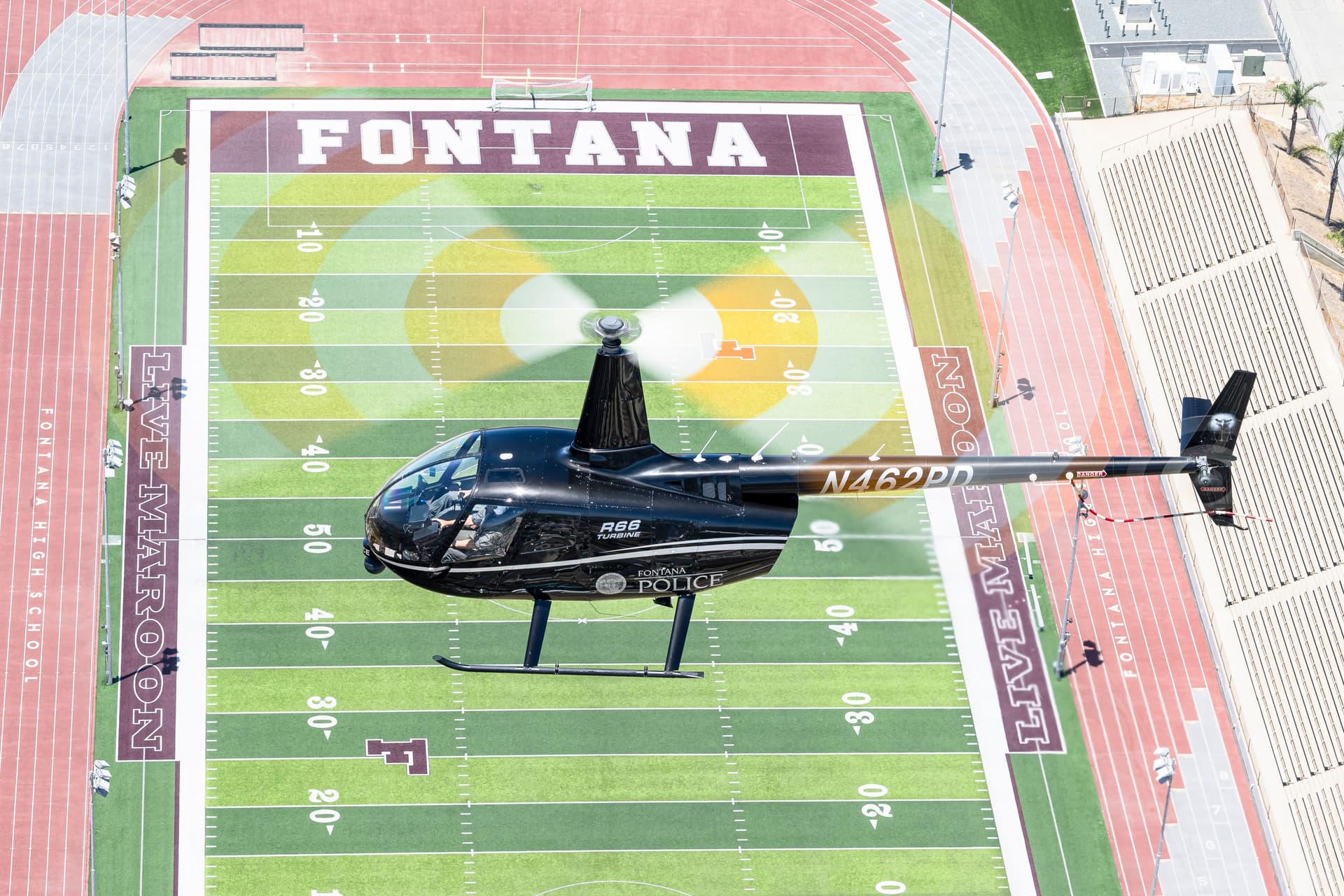

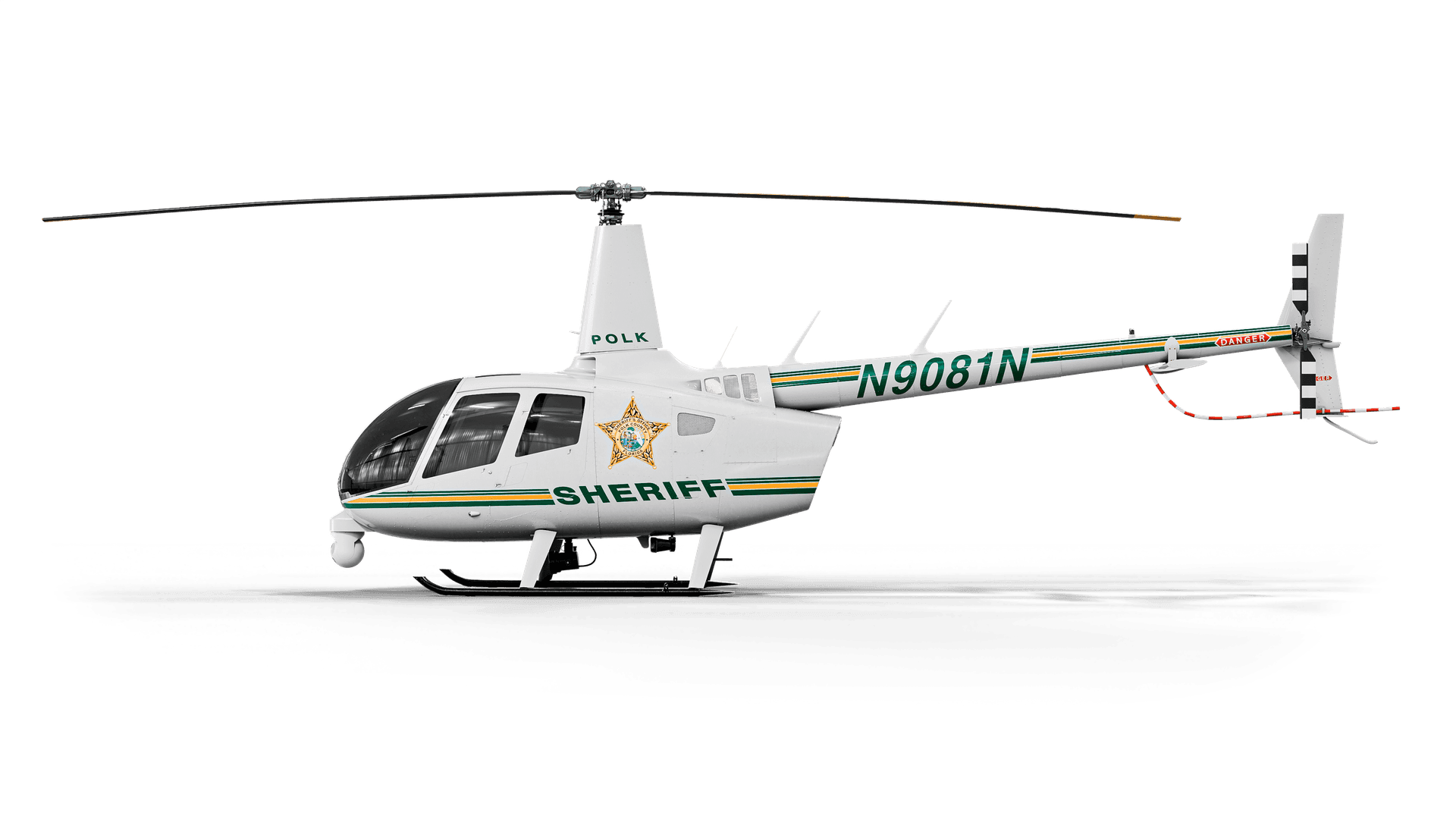

R66 Turbine Police Helicopter

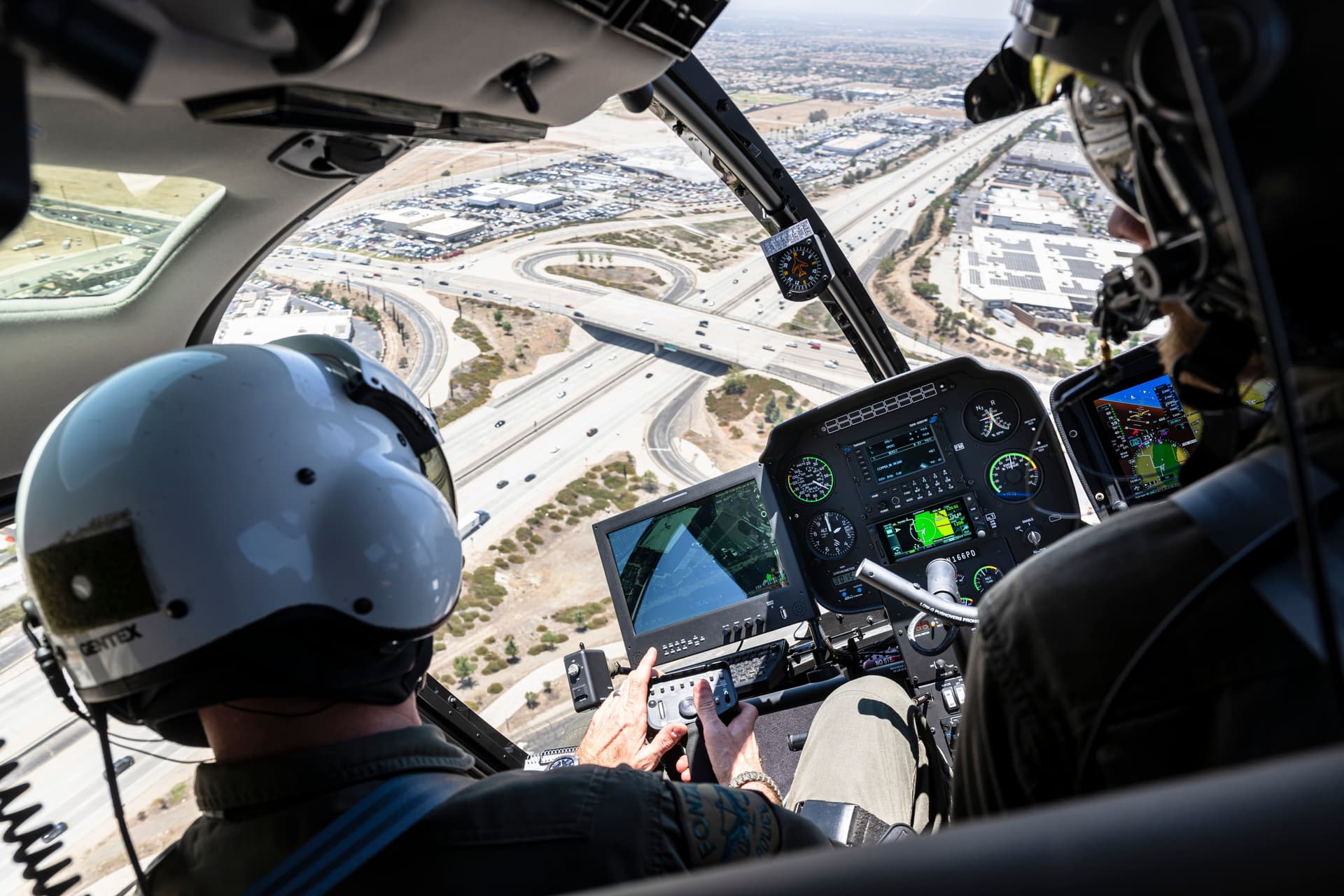

The R66 TURBINE POLICE HELICOPTER offers law enforcement a reliable, high-performance turbine helicopter that is economical and easy to maintain. The four-place R66 Police Helicopter meets the latest FAA crashworthiness regulations. Its aerodynamic fuselage optimizes airspeed and fuel economy allowing the helicopter to remain on station for up to three hours. Turn-key ready, the R66 Police Helicopter comes equipped with the latest in navigation and surveillance technology.

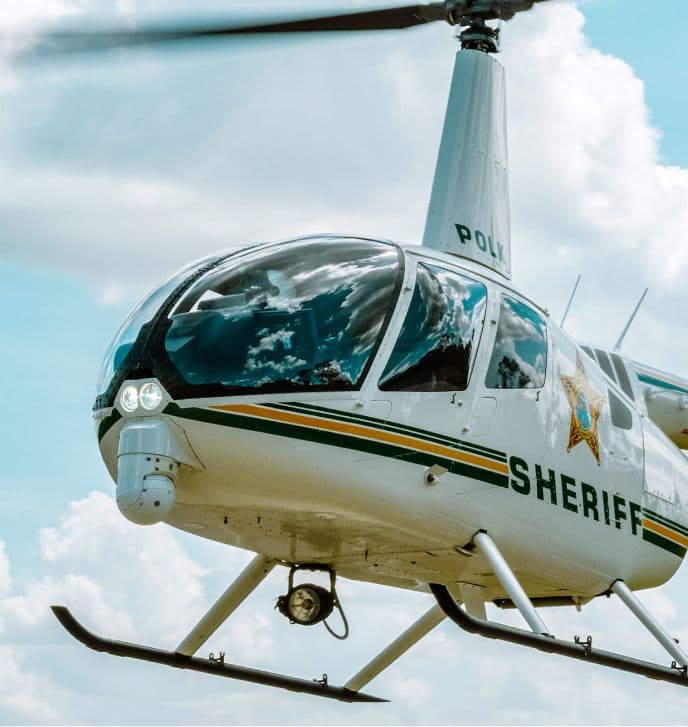

The R66 TURBINE POLICE HELICOPTER is equipped with the WESCAM MX-10, a small, multi-sensor imaging system in a single LRU configuration. It’s ideal for low-altitude, multi-role operations such as tactical surveillance and search-and-rescue missions.

Helicopter Bio

Specifications

Turbine Police
Engine
Rolls-Royce RR300 Turbine
Horsepower
300 shp turboshaft; derated to 270 shp for takeoff and 224 shp continuous
Maximum Gross Weight
2700 lb (1225 kg)
Approximate Empty Weight (including oil & standard avionics)
1421 lb (644g)
Fuel Capacity (73.6 gal)
493 lb (224 kg)
Pilot, Passengers, and Baggage (with maximum fuel)
786 lb (331 kg)
Cruise Speed at Maximum Gross Weight
Up to 110 kts (127 mph) (204 km/h)
Maximum Range (no reserve)
Approximately 325 nm (602 km)
Hover Ceiling IGE at Maximum Gross Weight
Over 10,000 ft
Hover Ceiling OGE at Maximum Gross Weight
Over 10,000 ft
Rate of Climb
Over 1000 fpm
Maximum Operating Altitude
14,000 ft
Electrical System
28 volt

Options & Standard Equipment

icon: optional-equipment

Optional Equipment

icon: optional-avionics

Optional Avionics

icon: r66-optional-instruments

Optional Instruments

icon: optional-accessories

Optional Accessories

icon: standard-equipment

Standard Equipment

icons: standard-avionics

Standard Avionics

std-instruments.svg

Standard Instruments

icon: standard-accessories

Standard Accessories

Instrument Consoles

Dimensions

R66 Turbine Police Helicopter Dimensions Diagram
