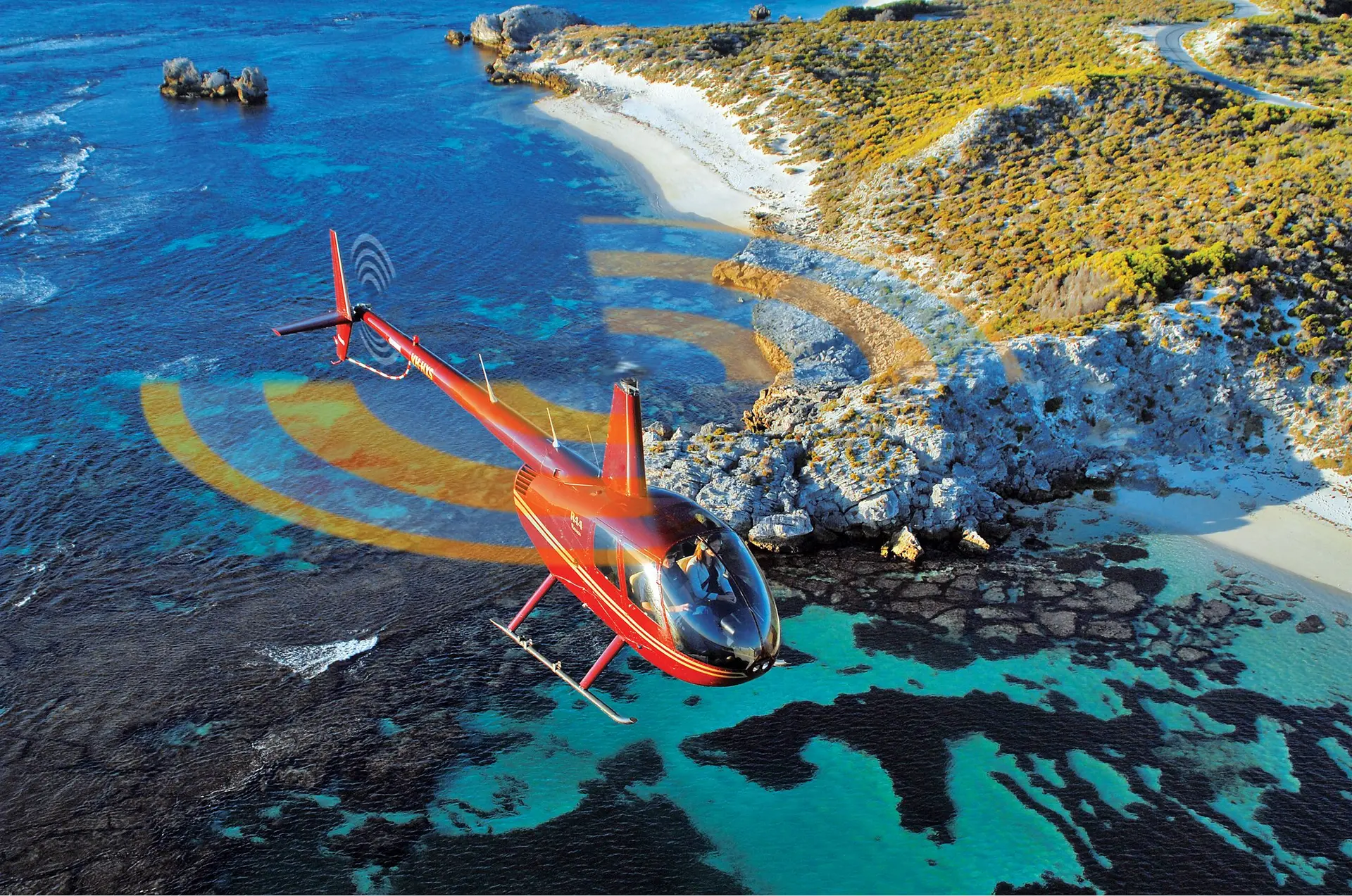

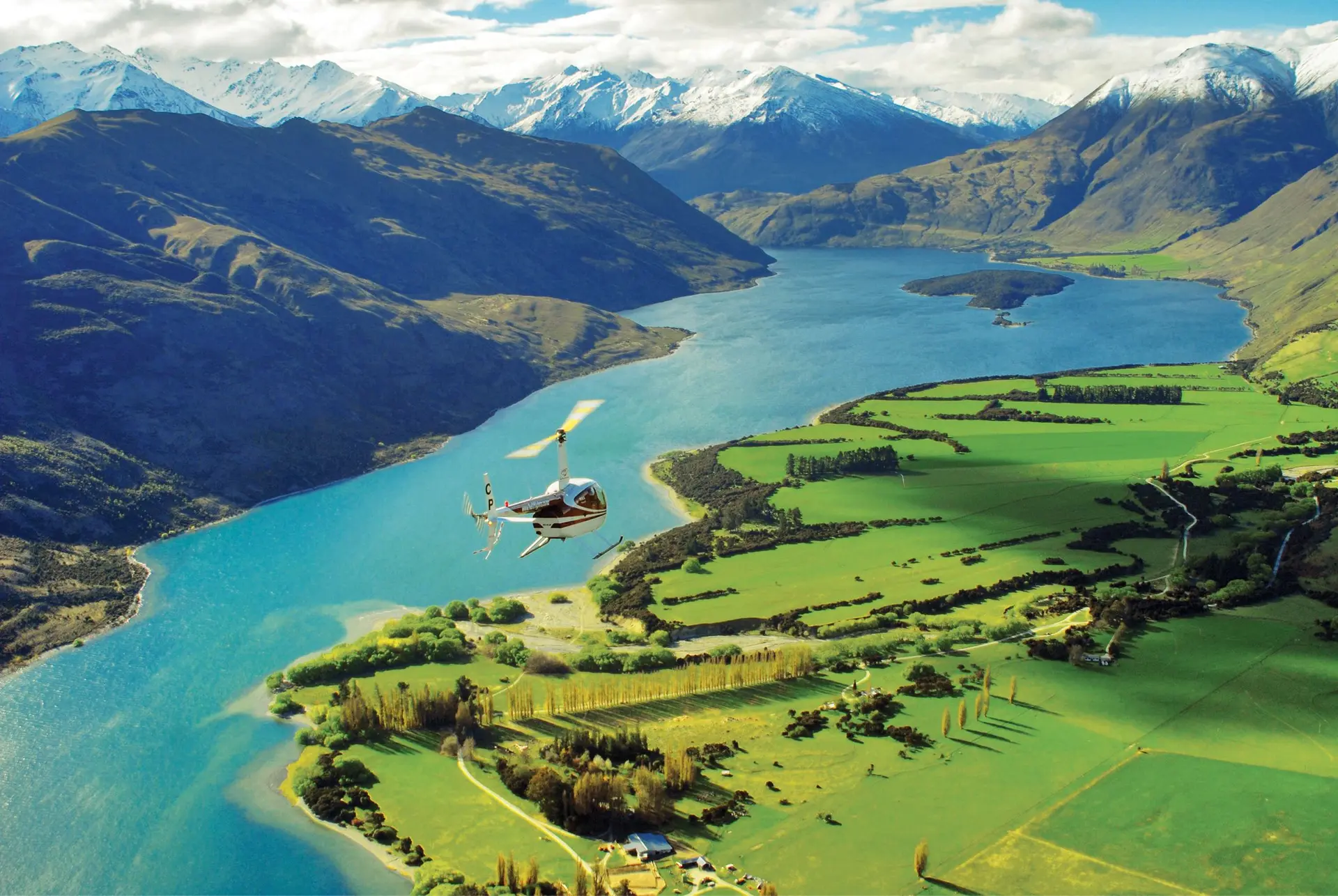

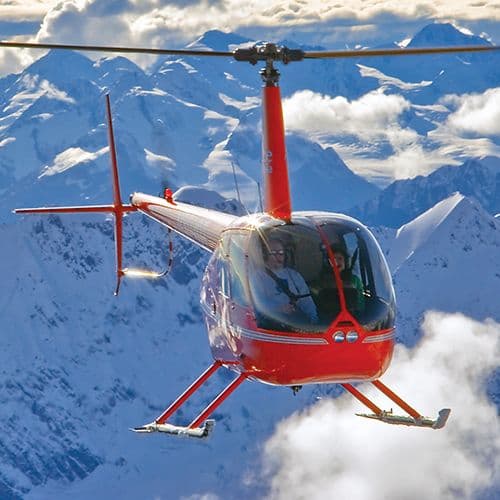

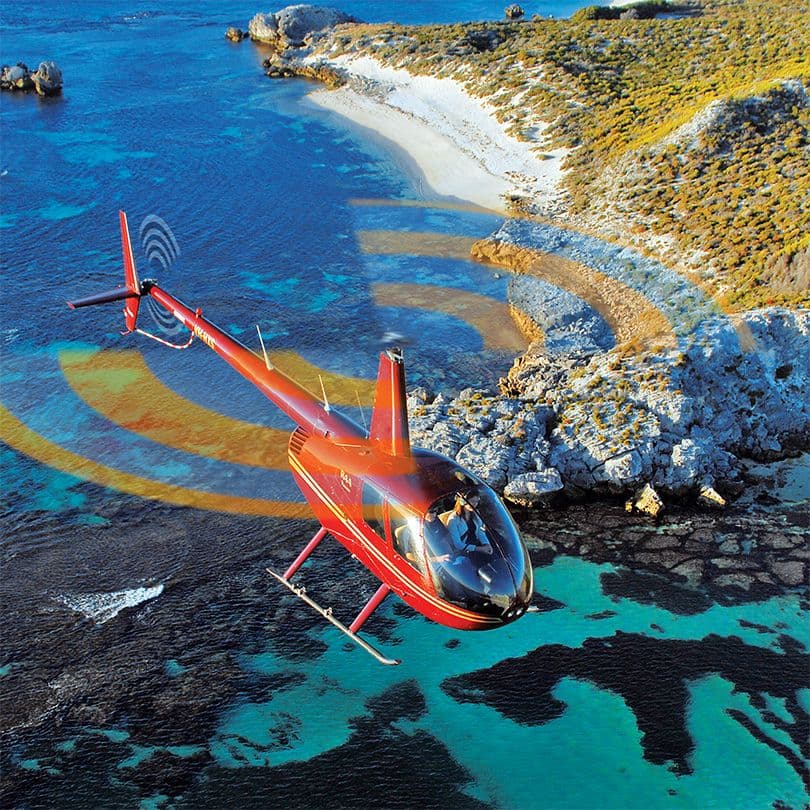

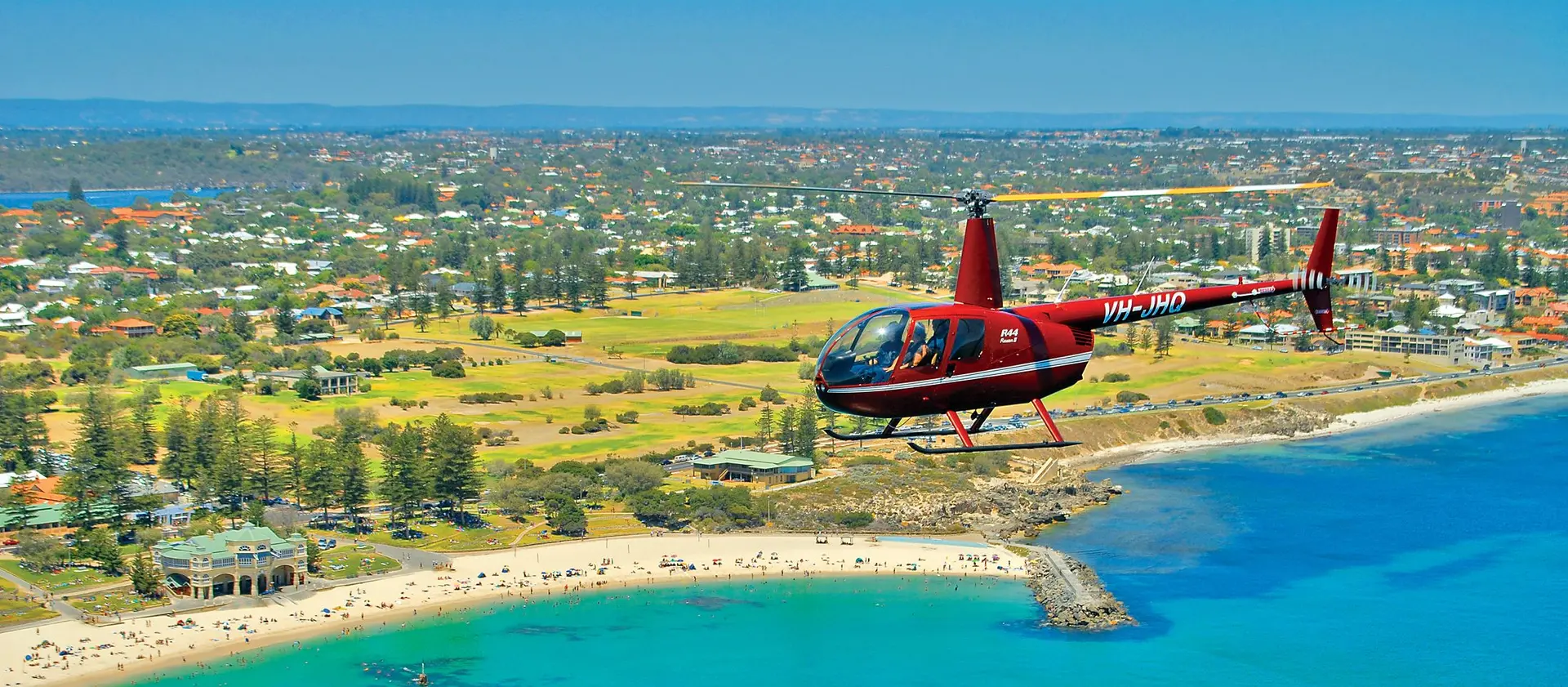

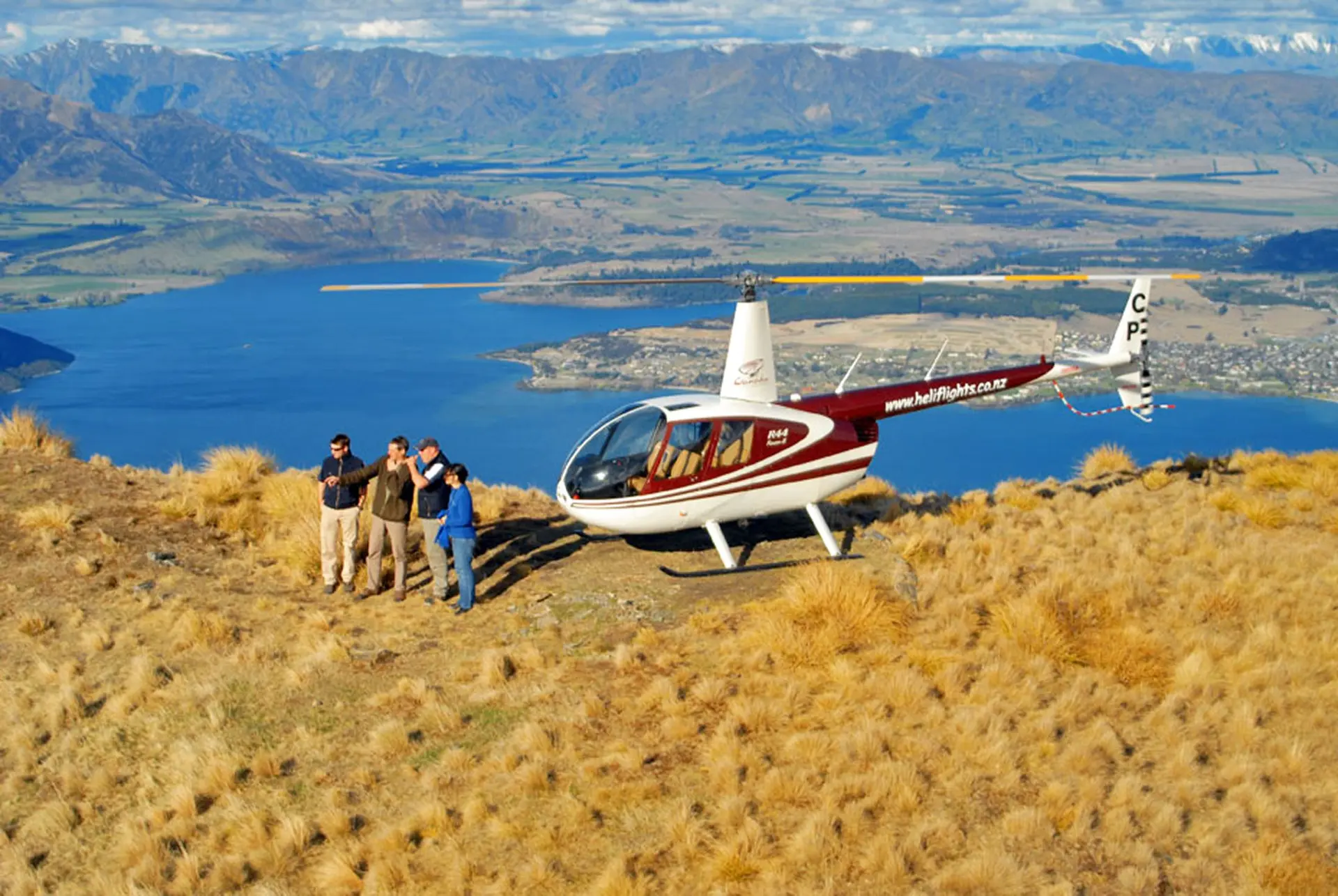

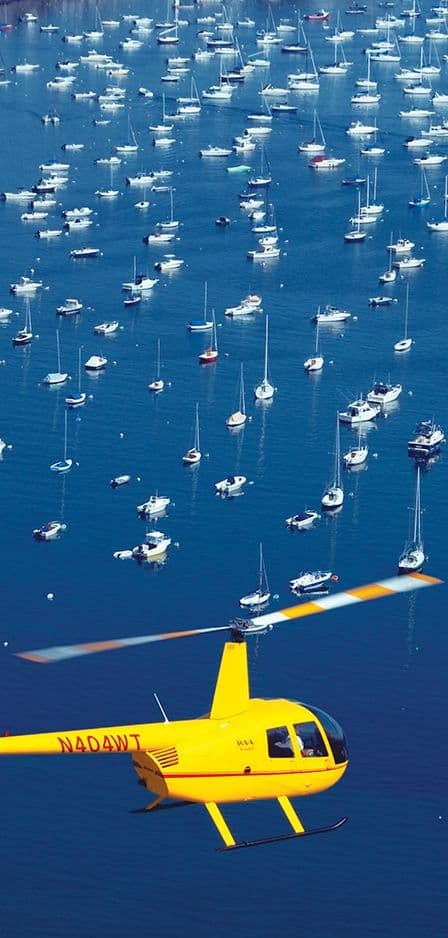

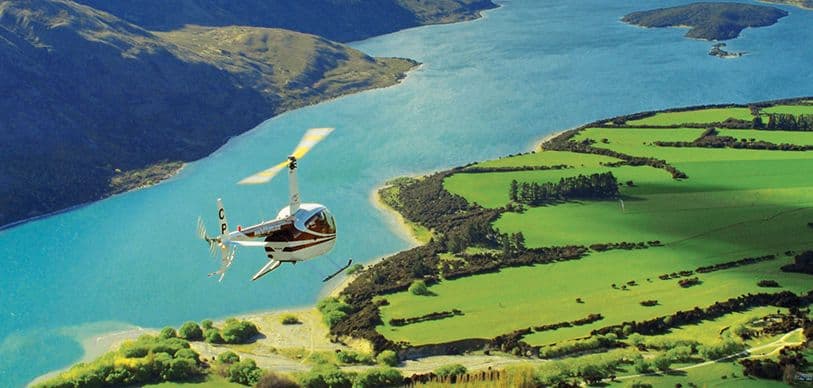

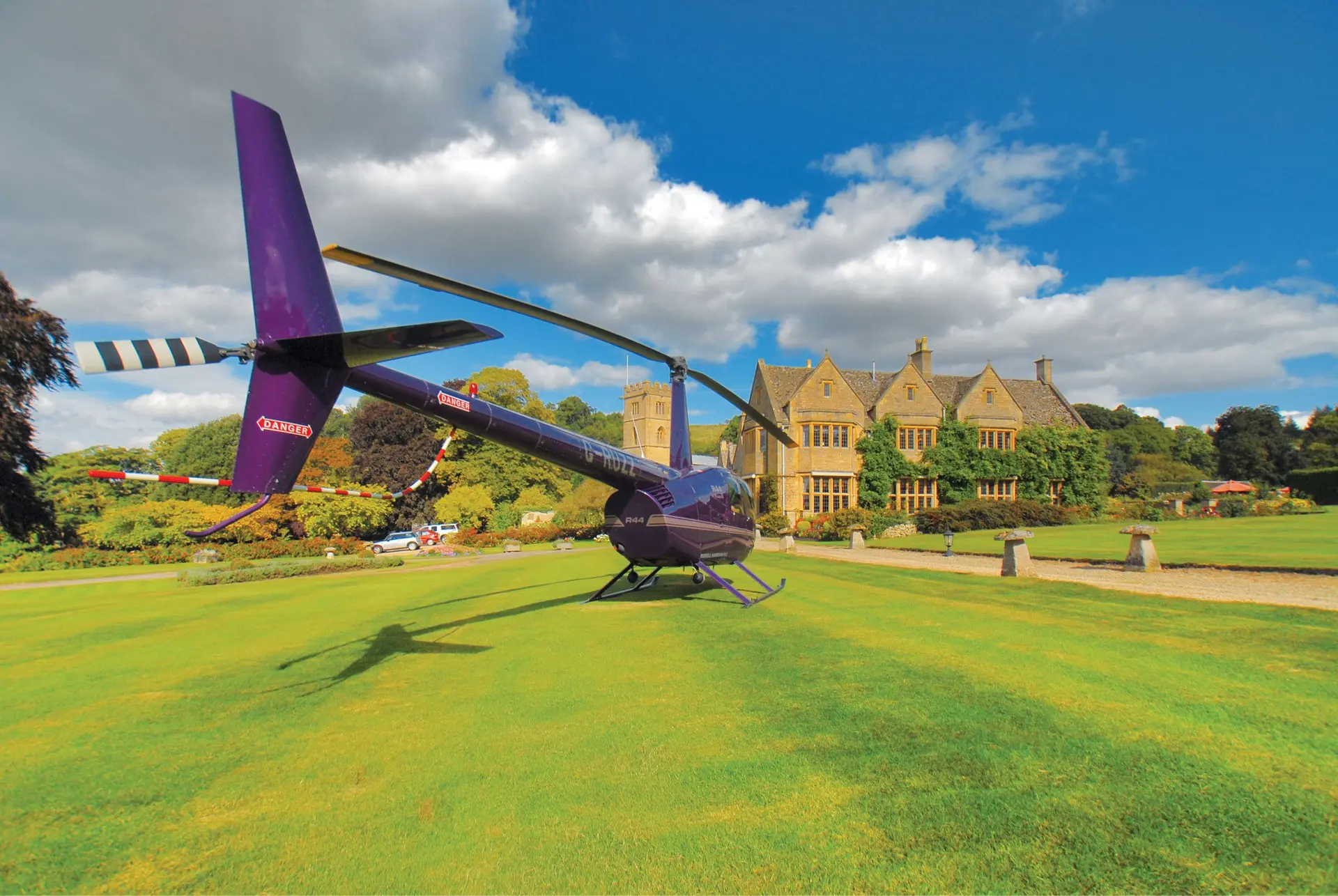

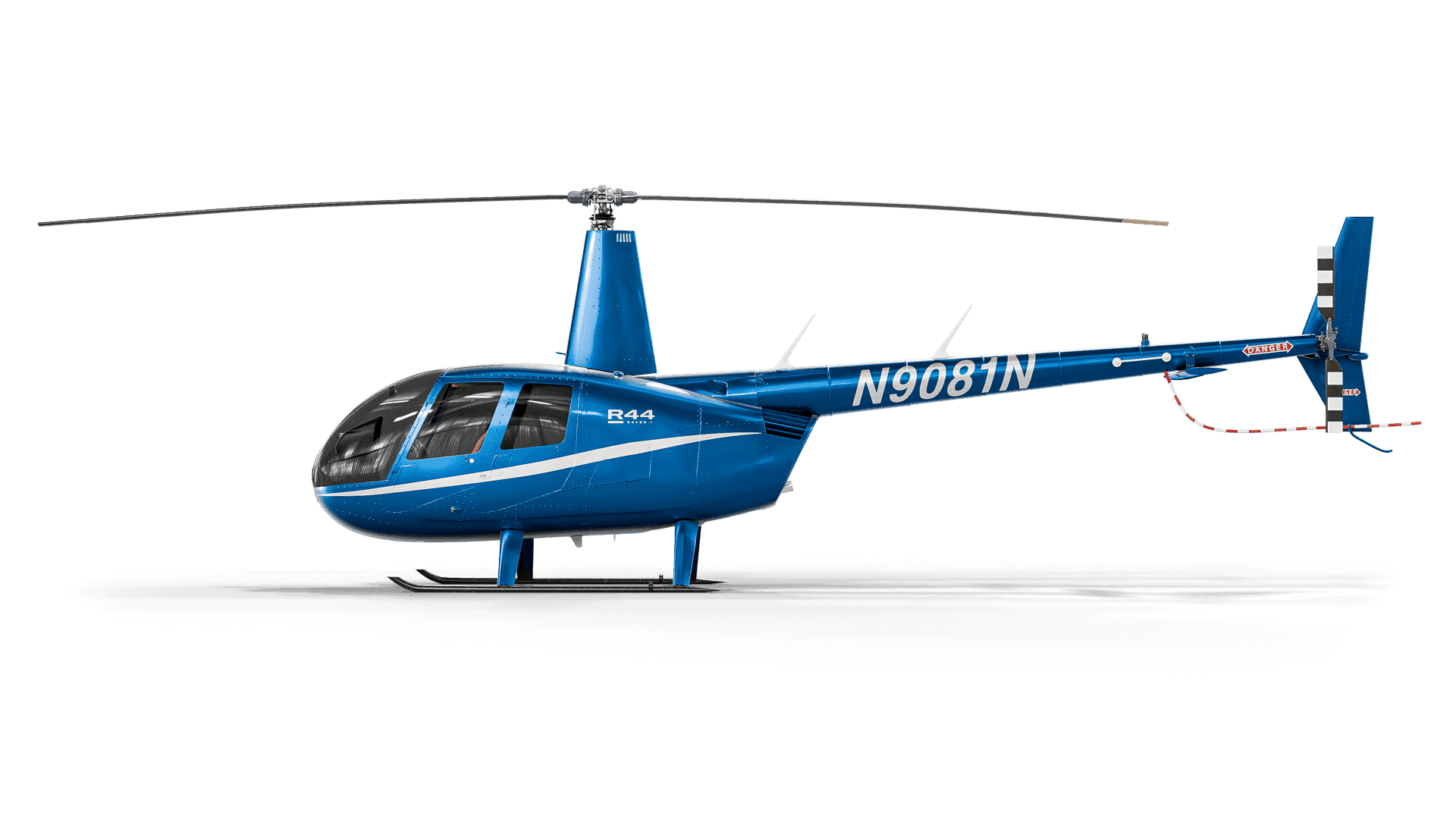

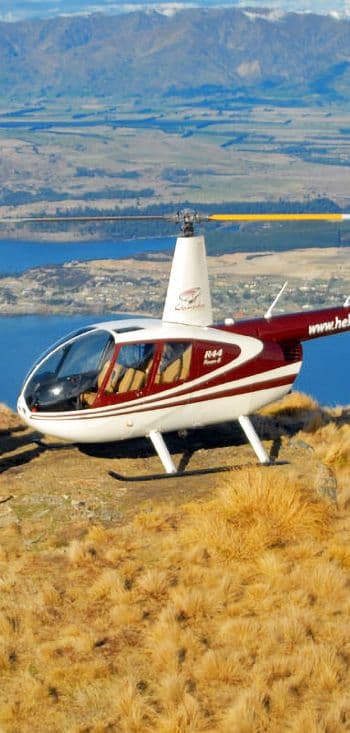

R44 Raven I & Clipper I

Four-seat R44 RAVEN I and R44 CLIPPER I helicopters are high-performing, reliable, and easy to maintain. R44s have a two-bladed rotor system, T-bar cyclic, streamlined instrument panels, and a crashworthy fuel system. An aluminum monocoque and powder-coated steel tube structure provides a lightweight, yet robust airframe while the aerodynamic fuselage optimizes airspeed and fuel economy. Hydraulically boosted controls eliminate cyclic and collective feedback forces and provide responsive handling. A low tail-rotor tip speed and large cambered tail reduce flyover noise. Raven I and Clipper I helicopters are powered by Lycoming’s O-540 carbureted piston engine with carburetor heat assist that automatically adjusts carburetor heat, enhancing safety and reducing pilot workload.

Helicopter Bio

Specifications

Raven I
Clipper I
Engine

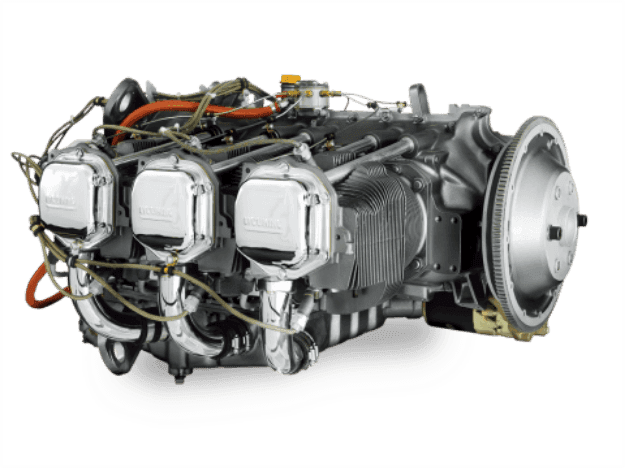

Lycoming O-540, six cylinder, carbureted
Lycoming O-540, six cylinder, carbureted
Horsepower
Derated to 225 hp for takeoff and 205 hp continuous
Derated to 225 hp for takeoff and 205 hp continuous
Maximum Gross Weight
2400 lb (1089 kg)
2400 lb (1089 kg)
Approximate Empty Weight (including oil & standard avionics)
1450 lb (658 kg)
1500lb (680 kg)
Fuel Capacity (73.6 gal)
29.5 gal (111.7 l) capacity / 177 lb (80 kg)
29.5 gal (111.7 l) capacity / 177 lb (80 kg)
Auxiliary Fuel (17.0 gal)
17.0 gal (64.4 l) capacity / 102 lb (46 kg)
17.0 gal capacity (64.5 l) / 102 lb (46 kg)
Pilot, Passengers, and Baggage (with maximum fuel)
773 lb (351 kg)
723 lb (328 kg)
Cruise Speed at Maximum Gross Weight
Up to 108 kts (200 km/h)
Up to 101 kts (187 km/h)
Maximum Range (no reserve)
Approximately 300 nm (550 km)
Approximately 300 nm (550 km)
Hover Ceiling IGE at Maximum Gross Weight
6400 ft at 2400 lb
6400 ft at 2400 lb
Hover Ceiling OGE at Maximum Gross Weight
4000 ft at 2300 lb
4000 ft at 2300 lb
Rate of Climb
Over 1000 fpm
Over 1000 fpm
Maximum Operating Altitude
14,000 ft
14,000 ft
Electrical System
28 volt
28 volt

Options & Standard Equipment

icon: optional-equipment

Optional Equipment

icon: optional-avionics

Optional Avionics

r44-1-optional-instruments-icon.svg

Optional Instruments

icon: optional-accessories

Optional Accessories

icon: standard-equipment

Standard Equipment

icons: standard-avionics

Standard Avionics

instrument-panel-standard-6-hole-icon.svg

Standard Instruments

icon: standard-accessories

Standard Accessories

Instrument Consoles

Dimensions

R44 Raven I & Clipper I Dimensions Diagram
